EN 10025 2 S235JR equivalent steel grades

EN 10025 2 S235JR steel is known as EN standard carbon steel, or called as mild steel in some places. The minimum yield strength of EN 10025 2 S235JR steel shall be 235 Mpa for nominal thickness, and tensile strength of EN 10025 2 S235JR steel shall be within 360-510Mpa. EN 10025 2 S235JR equivalent steel grades are GB Q235B, ASTM A36, JIS SS400, etc.

Chemical composition of EN 10025 2 S235JR equivalent steel grades:

Grade  C (t≤16mm) Si Mn P S Cu N
S235JR 0.19 max - 1.5 max 0.045 max 0.045 max 0.60 max 0.014 max
A36 0.26 max 0.40 max - 0.040 max 0.050 max 0.20 min -
SS400 - - - 0.050 max 0.050 max - -
Q235B 0.20 max 0.35 max 1.40 max 0.045 max 0.045 max - -

Mechanical properties of EN 10025 2 S235JR equivalent steel grades:

Grade Yield strength ReH/(N/mm2) Tensile strength Rm/(N/mm2) (3mm≤t≤16mm) Elongation A/% Charpy V test
(t≤16mm) min (3mm≤t≤40mm) min Temperature/℃ Impact energy (Longitudinal)/J min
S235JR 235 360-510 26 20 27
A36 250 400-550 23 - -
SS400 245 400-500 21 - -
Q235B 235 370-500 26 20 27

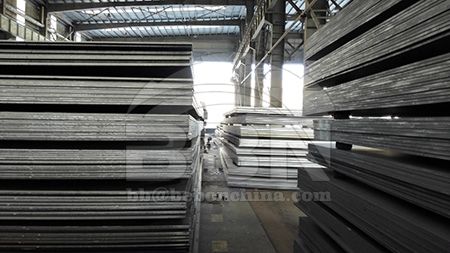

EN 10025 2 S235JR equivalent steel grades are mainly used to produce structural parts of the bolted and welded steel in dustrial area. BBN steel is experienced in supplying all the EN 10025 2 S235JR equivalent steel grades: S235JR steel plates, A36 steel plates, SS400 steel plates, Q235B steel plates, etc. Welcome to contact us for more information about EN 10025 2 S235JR equivalent steel grades.
