The Schiess VMG6 CNC Double-gantry boring-milling machining center is one of the largest and the most advanced machine tools in the world. The device can clamp five sides once and realize Seven-five axis through double-gantry and rotary table. Moreover, it can meet the process demands with higher precision and efficiency for nuclear power, gas turbine, aviation, aerospace, and military field.

SCHIESS

Machining Equipment

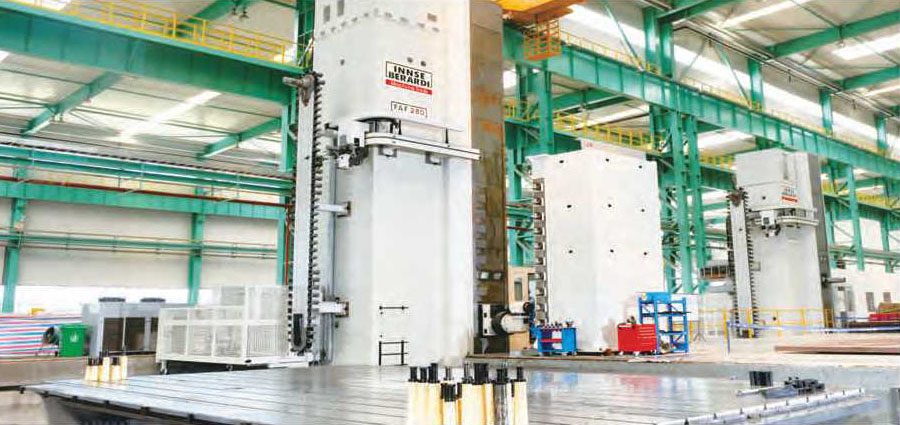

Floor-type Milling-boring Machine [11 Sets]

Technical Data	Wuzhong	Wuzhong	Pama
X axis Y axis (Z+W) axis	12000 4000 (800+800) mm	16000 5000 (1200*1200)mm	12000 3000 (1200+1000)mm
Table Size	3000*3000mm	4000*4000mm	3600*4000mm
Load Bearing	60t	100t	65t
Boring Bar Dia	Φ160mm	Φ200mm	Φ160mm

Technical Data	Pama	INNSE260	INNSE280
X axis Y axis (Z+W) axis	20000 5000 (1200+1000)mm	17500 6000 (1400+1600)mm	25700 8000 (1800+2000)mm
Table Size	4000*4000mm	3500mm*5000mm	5000mm*9000mm
Load Bearing	100t	100t	250t
Boring Bar Dia	Φ180mm	Φ260mm	Φ280mm

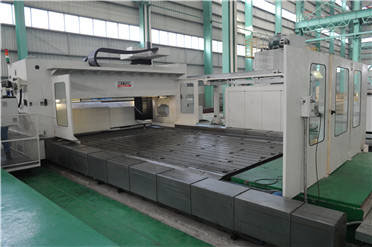

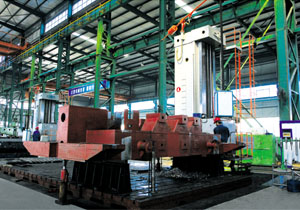

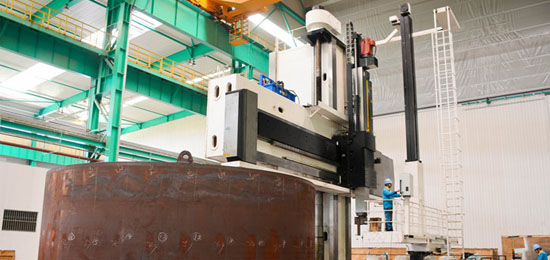

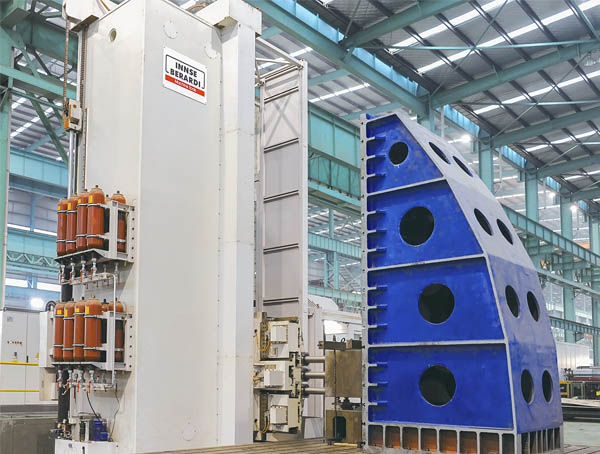

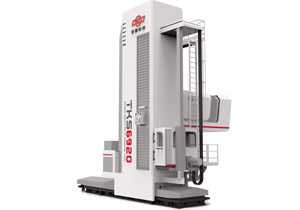

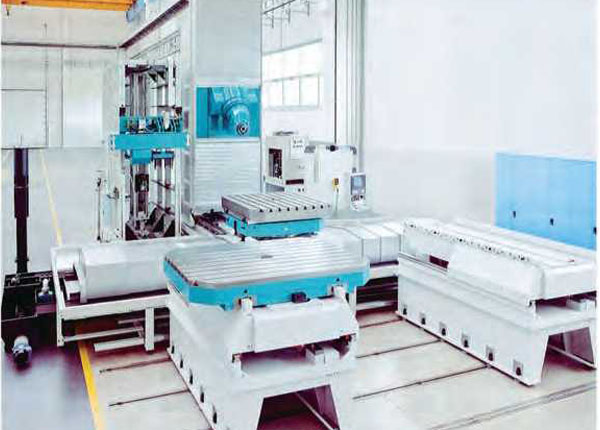

Floor-type Milling-boring Machine

Machining Equipment

Portal-type Processing Center [16 Sets]

Technical Data	Schess, German	Okuma, Japan	Wuzhong Double Column		Youjia（FV4224E）	Youjia（FV3215)
Height	7000mm	1850mm	3000/1750mm	5000/2000mm	1170mm	970mm
Width between Columns	8000mm	3050mm	4300mm	6000mm	2400mm	1600mm
Length	50000mm	5000mm	20000mm	28000mm	4200mm	3200mm
Table Size	8000*40000mm	2500*4800mm	3000*26000mm	5000*30000mm	2000*4000mm	1400*3000mm
Rotary table Diameter	Φ6000mm	—	——	——	—	—
Simultaneous	7-5 Axis Simultaneous Motion	3-Axis Simultaneous Motion	3-Axis Simultaneous Motion	3-Axis Simultaneous Motion	3-Axis Simultaneous Motion	3-Axis Simultaneous Motion

Technical Data	Mitsubishi I II III, Japan
Height	1950mm	1950mm	2550mm
Width between Columns	4250mm	4250mm	3800mm
Length	10200mm	8200mm	6200mm
Table Size	3500*10000mm	3500*8000mm	3000*6000mm
Rotary table Diameter	—	一	一
Simultaneous	3-Axis Simultaneous Motion	3-Axis Simultaneous Motion	3-Axis Simultaneous Motion

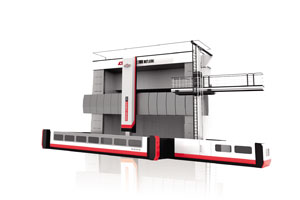

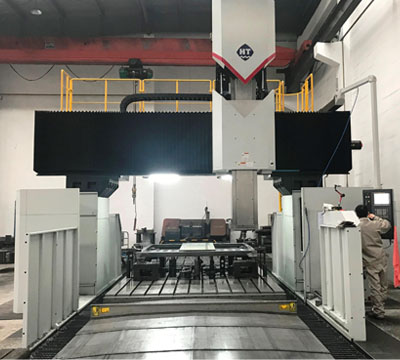

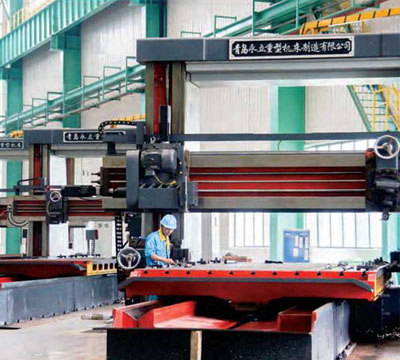

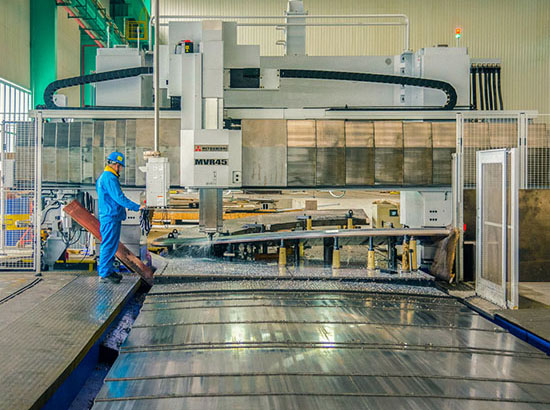

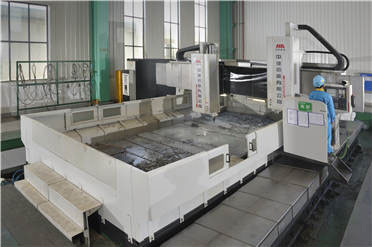

Portal-type Processing Center

Machining Equipment

Turning and Milling [5 Sets]

Technical Data	Wuzhong Double Column		Wuzhong Double Column	Schess
Height	5000mm	6000mm	6500mm	3000mm
Load Bearing	160t	400t	600t	50t
Table Diameter	Φ7200mm	Φ10000mm	Φ10000mm	Φ3500mm
Max. machining Diameter	Φ8000mm	Φ12500mm	Φ22000mm	Φ4000mm
Simultaneous	3-Axis Simultaneous Motion	3-Axis Simultaneous Motion	3-Axis Simultaneous Motion	5-Axis Simultaneous Motion

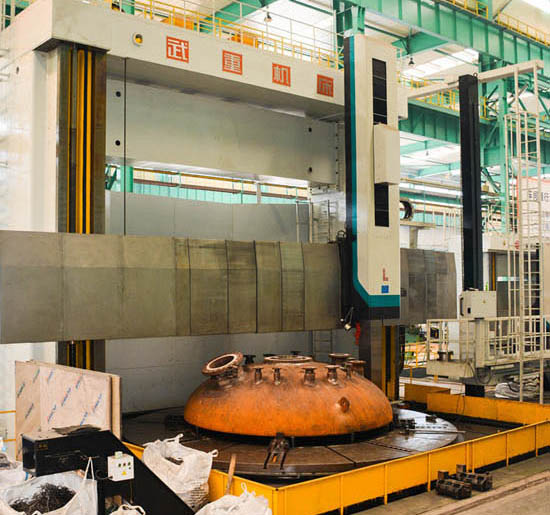

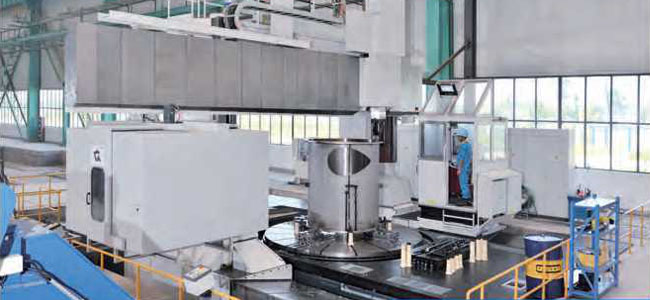

Schess Turning and Milling Center

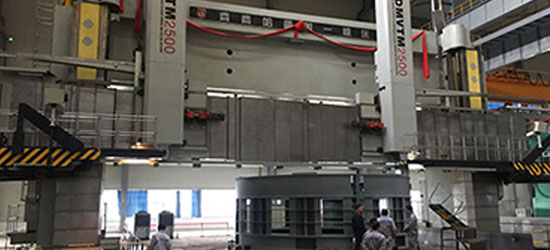

Single Column

Double Column

Machining Equipment

Vertical Lathe [10 Sets]

Technical Data	Wuzhong	Wuzhong	Qizhong	Qizhong	Qizhong
Table Diameter	Φl600mm	Φ3150mm	Φ3600mm	Φ4000mm	Φ4000mm
Max. Machining Diameter	Φ2000mm	Φ3500mm	Φ4000mm	Φ5000mm	Φ5000mm
Height	1600mm	2500mm	2000mm	2500mm	4000mm
Load Bearing	5t	40t	32t	50t	50t

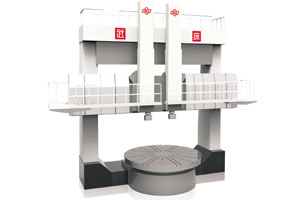

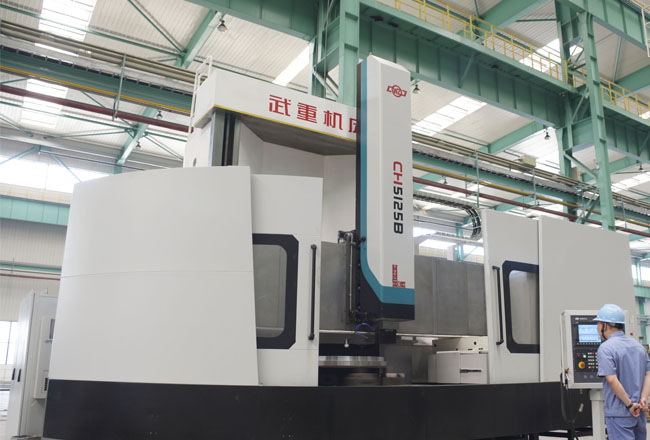

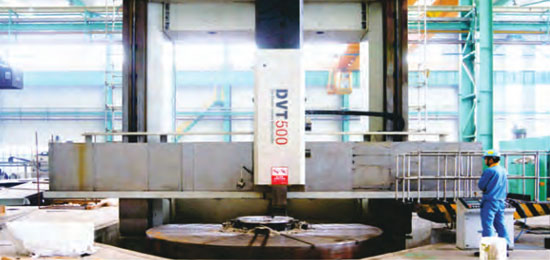

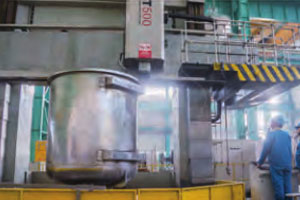

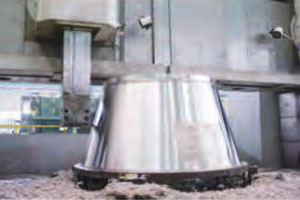

Vertical Lathe

Machining Equipment

Deep-Hole Drilling Machine [11 Sets]

Technical Parameters	INNSE Italy	DAE-YANG South Korea
X-axis, Y-axis, Z-axis	6000 4500 1100mm	4000 3000 1000mm
Boring Diameter	≤Φ60mm	Φ16-Φ80mm
Processing Depth	≤1000mm	≤1000mm

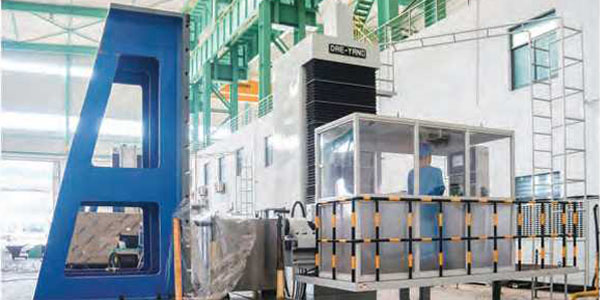

INNSE,Italy

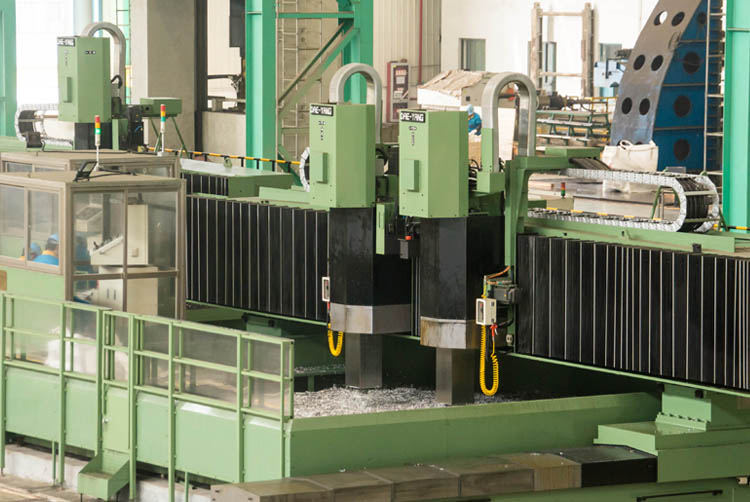

DAE-YANG, South Korea

Machining Equipment

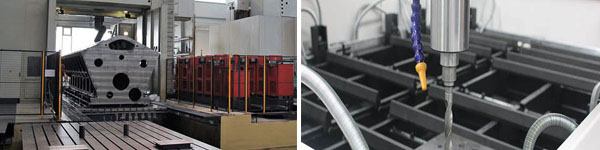

Multi-Drilling Machine [32Sets]

Technical Parameters	INNSE Italy	Shenyang Machine Tool GDC60130MD, GDC3070MD		DAE-YANG South Korea
X-axis, Y-axis, Z-axis	8000 4500 1000mm	13000 6000 500mm	7000 3000 500mm	6000 6000 800mm
Boring Diameter	≤Φ120mm	≤Φ100mm	≤Φ100mm	Φ2 -Φ 100mm
Processing Depth	≤420mm	≤300mm	≤200mm	≤400mm

DAE-YANG South Korea

INNSE Italy

Shenyang Machine Tool

Equipment - Beveling

Planer [3 Sets]

Planer Technical Parameters	General Digital Display	General Digital Display	General Digital Display	General Digital Display
X-axis, Y-axis, (Z+W) axis	2000 8000 1800mm	3150 6000 2000mm	3150 6000 2000mm	2000 8000 600mm
Table Size	1800 X 8000mm	2700 X 6000mm	2700 X 6000mm	2700 X 6000mm
Weight	36t	35t	35t	30t

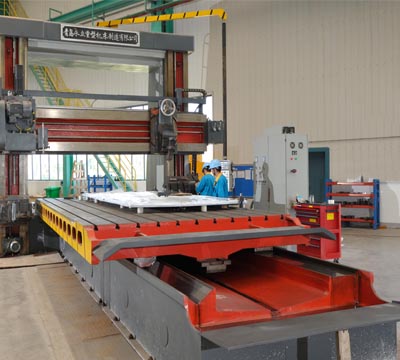

Planer Desktop Processing Center

9 Sets Beveling Machine

Equipment - Welding

Plasma Welding Machine

Technical Data
Weld Length	≤12500mm
Plate Butt Thickness	1-10mm

Equipment - Welding

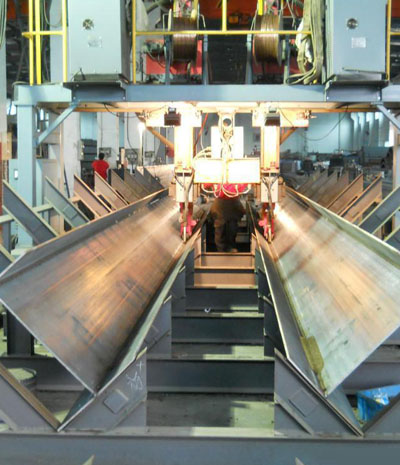

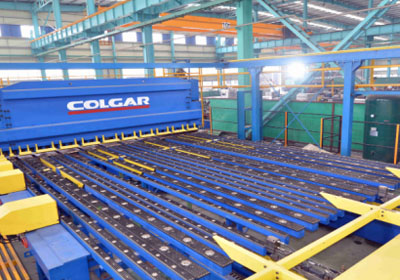

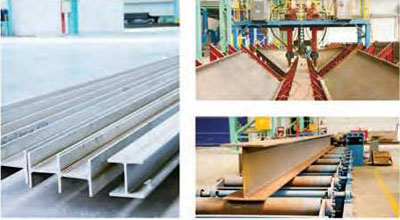

H-Shaped Steel Production Line

Technical Data of Straightening Machine
Flange Width	200-800mm
Flange Thickness	6-40mm
Minimum Web Height	200mm

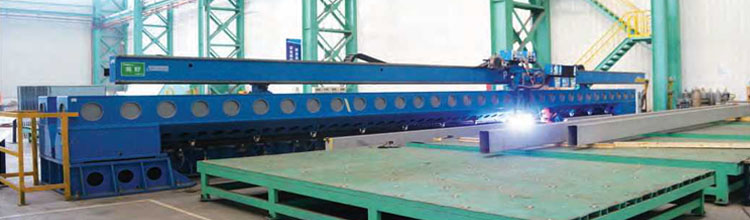

Technical Data of Door-type SAW
Suitable for The Width of H Beam	200-800mm
Suitable for Length of H Beam	2000-15000mm
Suitable for Height of H Beam	200-1500mm

Technical Data of Assembly Machine
Flange Width	150-800mm
Thickness	6-60mm
Web Height	200-2000mm

Equipment - Welding

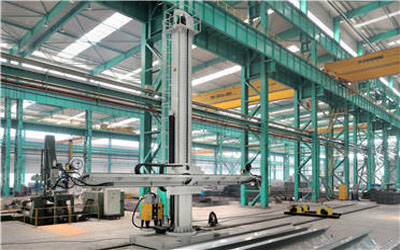

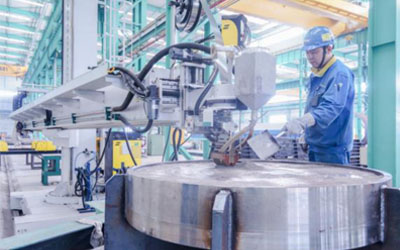

Strip Overlay Welding Machine

Technical Data of Strip Overlay Welding Machine
Dia	8000mm
Weight	100t

Equipment - Cutting

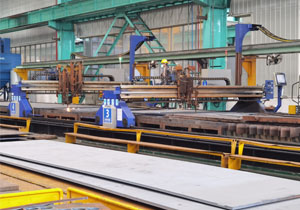

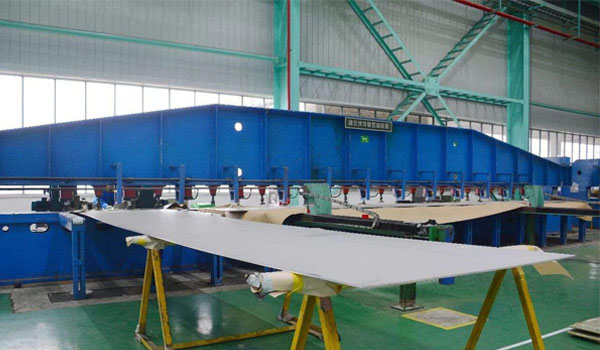

Cutting Machine

Technical Data	Laser Cutting	Flame Cutting	Plasma Cutting
Effective Width of The Cutting	≤ 4050mm	6000mm	3500mm
Effective Length of The Cutting	≤ 32000mm	28000mm	21000mm
Effective Thickness of The Cutting	2.0-22mm	-	-

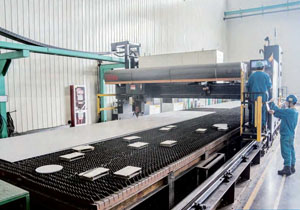

Plasma Cutting Machine

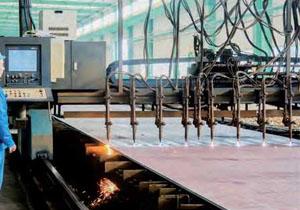

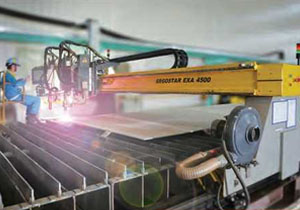

Flame Cutting Machine

Laser Cutting Machine

Flame Cutting Machine

Equipment - Bending

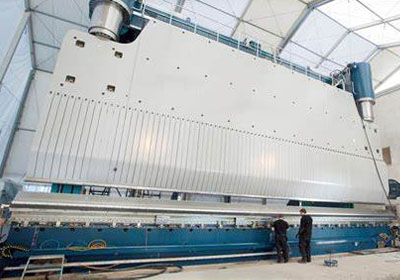

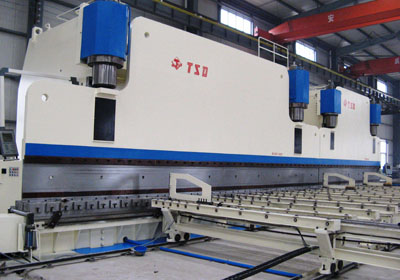

CNC Bending Machine

Technical Parameters	2000t Bending Machine	3000t Bending Machine
Thickness	≤60mm（length3000mm）	≤100mm( length 3000mm)
Length	12500mm	15000mm

Equipment - Bending

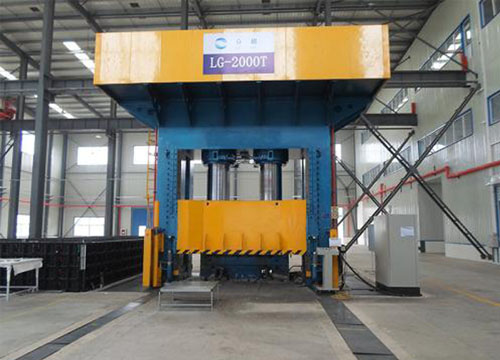

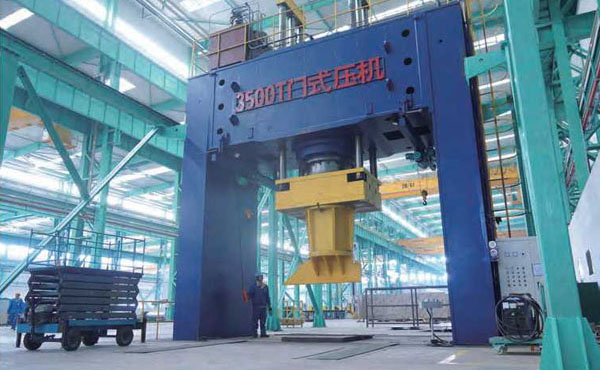

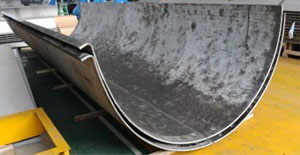

Pressing Machine

Technical Parameters	Pressing Machine	Self-Made Pressing Machine
Max Pressure	630t	3500t
Max Thickness	-	80mm
Max Width	4000mm	5000mm

Equipment - Rolling

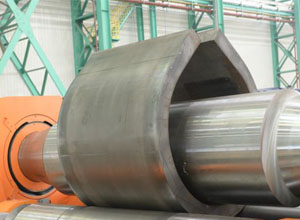

Three / Four Rolling Machine [7 Sets]

Technical Parameters of Bending Machine	FACCN (Three Rollers)	SERTOM (Four Rollers)	HAEUSLER
Width	3200mm	4100mm	4250mm
Thickness	110/90mm	50mm	210mm

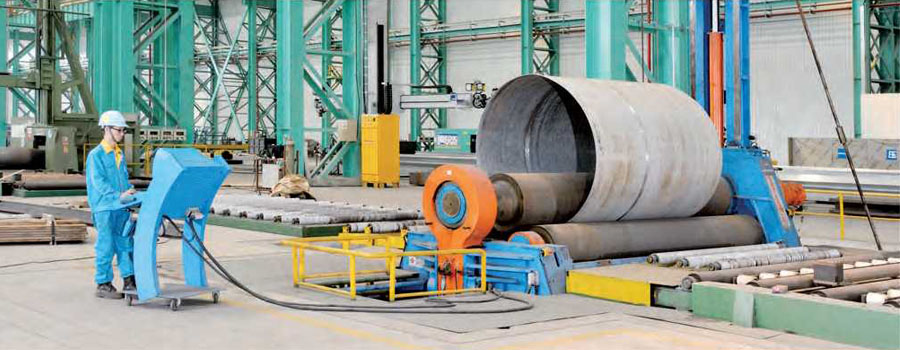

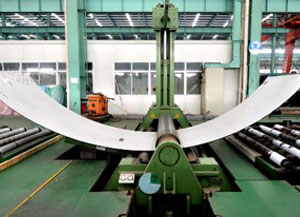

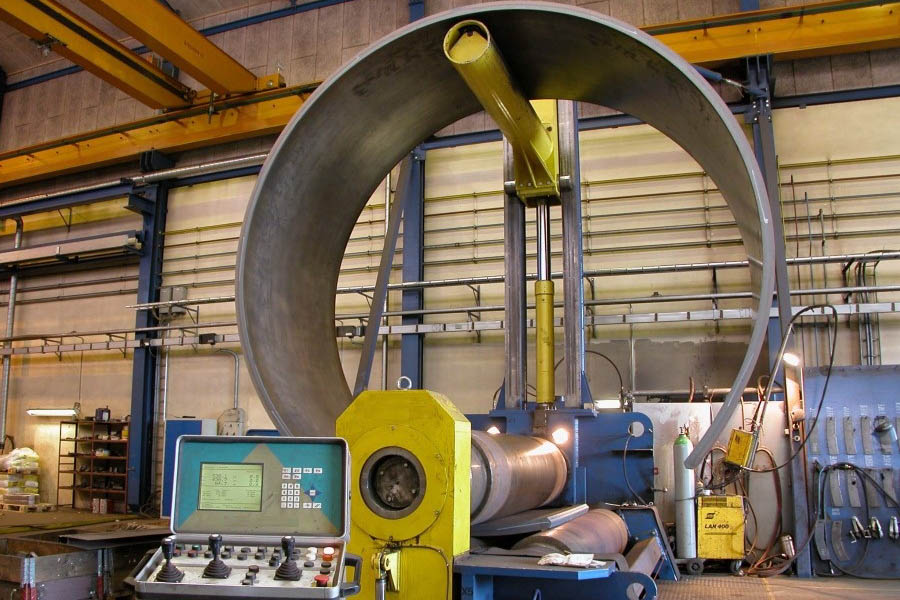

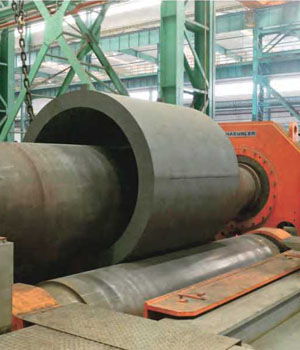

Four-rollers bending machine

Equipment - Auxiliary

NDT Room [3 Sets]

Technical Data	NDT Room I	NDT Room II	NDT Room III
Volume	32000 X 7000 X 7500 mm	15000 X 8000 X 6000 mm	15000 X 5000 X 3000 mm
Max Test Thickness	200 mm	50 mm	38 mm
Max Test Size	29000 X 65000 X 7000 mm	12000 X 5500 X 4200 mm	32000 X 3500 X 1800 mm

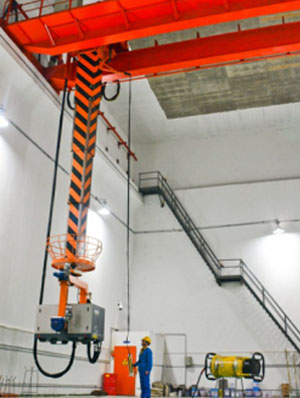

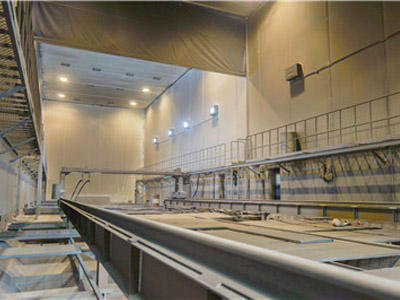

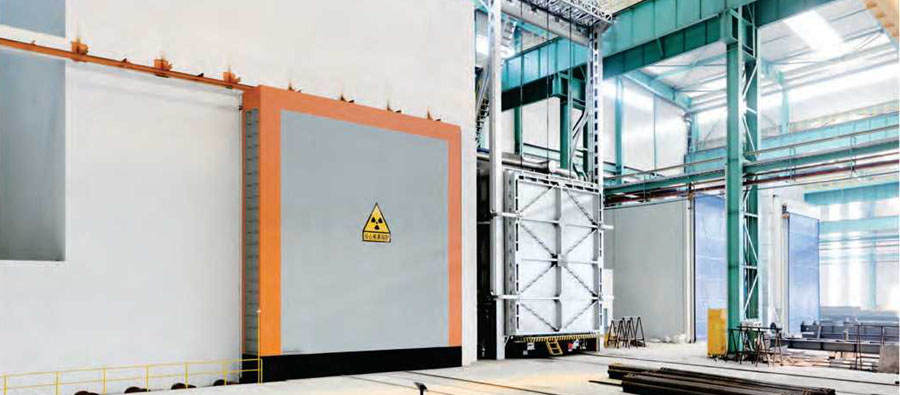

NDT Room

Machining Equipment

Other Auxiliary Equipments

Technical Data	Heat Treatment Furnace	Blasting Room	Painting Room
Volume	(13000+17000) X 7000 X 7000 mm	(13000+17000) X 7000 X 7000 mm	(13000+17000) X 7000 X 7000 mm
Max Size	28000 X 6000 X 6000 mm	28000 X 6000 X 6000 mm	29000 X 5500 X 6000 mm

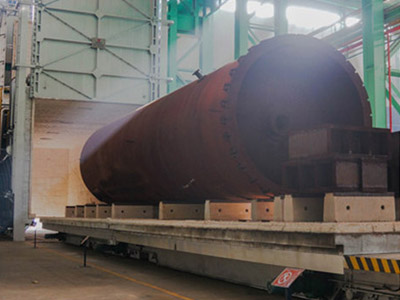

Heat Treatment Furnace

Blasting Room

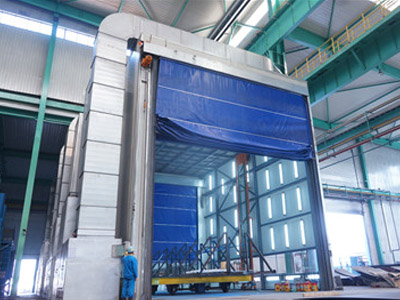

Painting Room

Machining Equipment

Inspection Equipment

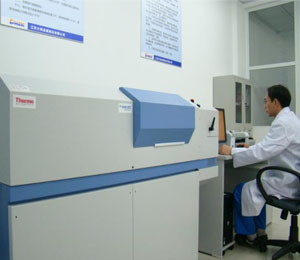

Spectrometer (Direct reading)

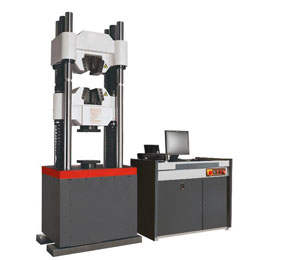

Universal Testing Machine (100T)

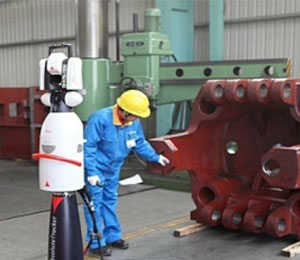

Laser-Inspection Tracker

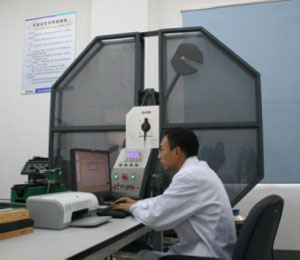

Impact Testing Machine

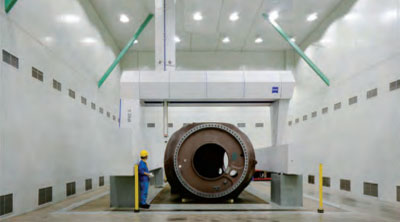

Three Coordinates Measuring Machine

Technical Data	Zeiss (Small)
Size	2000 X 3000 X 1500 mm
Precision	3.9+L/300μm
	Zeiss (Big)
Size	4000 X 7000 X 3000 mm
Precision	4.3+L/325μm
