Machining Capacity

Nine Major Processing Platforms

Material Processing, Deep Processing, Spare Parts, Manufacturing Facilities.

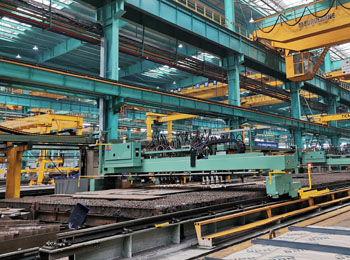

Cutting Platform

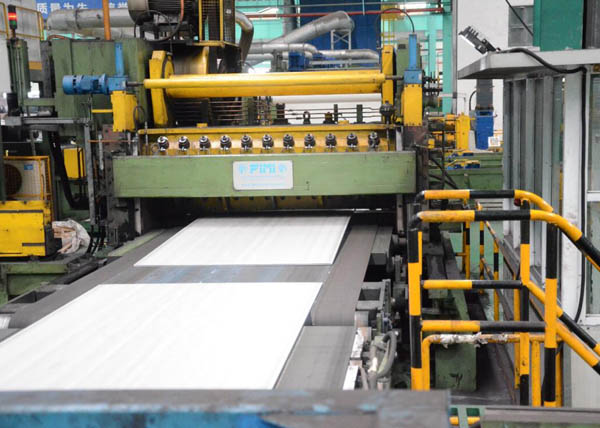

Coil-Cutting-Plates Equipment Cluster

Major Equipment Brands: Italy FIMI, Italy GUIDA, Italy VIGANO, Italy NOVA, South Korea Da-hyun

Available Width 100-2200mm Available Thickness 0.25-25.4mm Available Length 300-16500mm (Single Sheet Discharge MAX>20m) Machinging Capacity Thickness<10mm, Max Yield Strength≈1400Mpa
Thickness 10~15mm, Max Yield Strength≈1100Mpa
Thickness 16mm~25mm, Max Yield Strength≈500Mpa
Diagonal Length≤2000mm, Tolerance 0~1.0mm Flatness ≤0.1mm/2m
Available to Eliminate 75% of Board Surface Defects
Cutting Platform

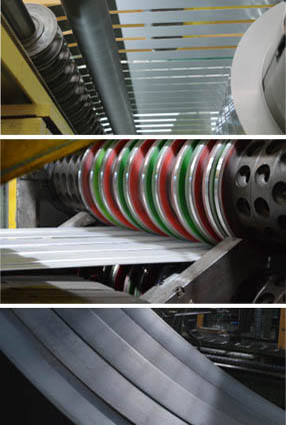

Slitting Machine Cluster

Major Equipment Brands: Italy FIMI, Italy GUIDA, Italy VIGANO, South Korea Da-hyun

Slitting Width 8-2200mm Slitting Thickness 0.2-18mm Slitting Quantity MAX 30 Pieces Machinging Capacity Thickness<8mm, Max Yield Strength≈1200Mpa
Thickness≤10mm, Max Yield Strength≈1000Mpa
Thickness 10mm~18mm, Max Yield Strength≈800Mpa
Slitting Width Tolerance Max 0~±0.5mm Slitting Camber ≤1.5mm/2000mm Slitting Burr Max, t<1mm:≤0.05mm
Max, t ≥1mm:≤5%t
Surface Treatment Platform

Grinding Equipment Cluster

Major Equipment Brands: Italy IMEAS, Japan Noritake

Coil Grinding Grinding Thickness 0.3 - 8mm Grinding Width 300 - 2000mm Grinding Roughness 0.4 - 3.0μm Grinding Type NO.3 / NO.4 / HL / SB / DUPULA
Plates Grinding Grinding Thickness 0.3 - 350mm Grinding Width 30 - 4800mm
Cutting Blanking Platform

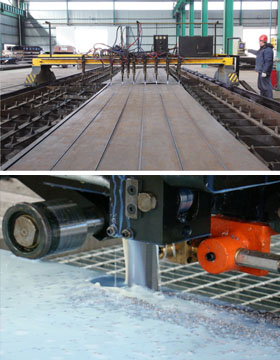

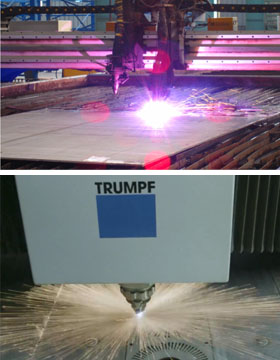

Cutting Equipment Cluster

Major Equipment Brands: Sweden Wjs, Esab, America Flow, Germany Messer,Trumpf, Japan Tanaka, Koike, Switherland Bystronic.



Water Jet Cutting Laser Cutting Plasma Cutting Machine Flame Cutting Machine Sawing Cutting Machine
Maximum Cutting Thickness 250mm 40mm 100mm 500mm 600mm
Maximum Cutting Width 4010mm 4100mm 4500mm 8000mm 2500mm
Maximum Cutting Length 12000mm 32000mm 25000mm 24000mm 8000mm
Precision Control ±0.8mm ±0.02mm ±1mm

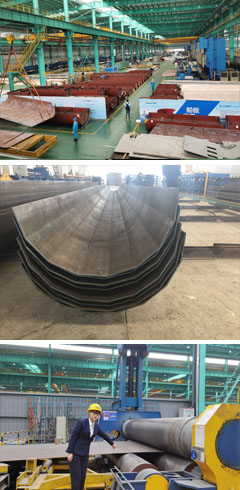

Forming Processing Platform

Bending, Circle Equipment Cluster

Major Equipment Brands: Sweden Ursviken, Italy Kuka,Gasparini, Nova,Germany Trumpf, Arku, Switherland Bystronic, Haeusler Ag, Japan Amada.

Bending Capacity 30-3000T Maximum Bending Length 15000mm Cutting Plate Cutting Thickness 0.4-33mm Cutting Length 100-6050mm Anti-Distortion
(Width:Thickness)
5:1
Circling Width Max 5000mm Coil Thickness Max 200mm Correct Flat Machining Width 100-2650mm Machining Thickness 1-60mm Flatness 0.5mm/1m
Machining Platform

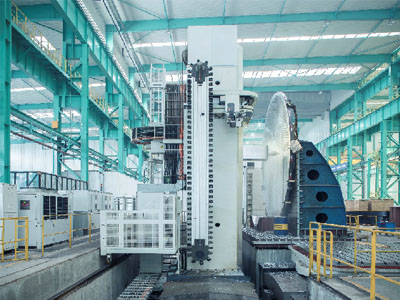

Gantry Machining, Floor-Type Boring and Milling Machine, Turn-Milling, Vertical Lathe, Deep and Multi-Hole Drilling Equipment Cluster

Major Equipment Brands: Germany Schiess, Italy Innse-Berardi, Pama, Japan Mitsubishi, Okuma, Korea Daeyang

  Maximum Machining Height Width Between Columns Maximum Machining Length
Gantry Machining Center 7000mm 8000mm 50000mm
  X Axial Y Axial Z+W Axial Maximum Load Bearing Boring Blade Diameter
Floor-Type Boring and Milling Machine 25700mm 8000mm (1800+2000)mm 250T ∅280mm
  Height Load Bearing Maximum Machining Diameter
Turning and Milling Machine 6500mm 600T ∅22000mm
Vertical Lathe 4000mm 50T ∅5000mm
  X Axial Y Axial Z Axial Drilling Capacity Working Depth
Deep-Hole Drilling Machine  6000mm 4500mm 1100mm ∅16-80mm ≤1000mm
Multi-Hole Drilling Machine 13000mm 6000mm 1000mm ∅2-120mm ≤420mm
Machining Platform

5000㎡ Constant Temperature Machining Workshop

Welding Platform

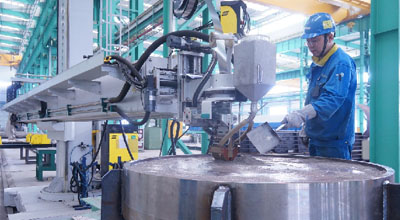

Plasma Welding, Strip Electrode Surfacing Welding, Argon Arc Welding, Tig Welding, Laser Welding, Manual Arc Welding, Submerged Arc Welding Equipment Cluster

Main Equipment Brands: German Trumpf, German Kuka, American Lincoln, Swedish Esab, French Saffron, Japanese Kawasaki and Panasonic.

Machining Capacity

Heat Treatment and Painting Platform

  • Heat Treatment: Furnace Sizes (30 X 6.8 X 6.5M), Maximum Temperature 1100℃, Temperature Control Accuracy ±20℃.
  • Sandblasting Room Sizes: 29 X 5.5 X 6M, 18 X 26 X 5M
  • Painting Room Sizes: 29 X 6 X 6M
Machining Capacity
