what's Large-scale oil storage tank

Large-scale oil storage tank, with capacity of more than 100 cubic meters, is a large container for storing crude oil or other petroleum products. Large-scale oil storage tank consists of tank wall, tank top, tank bottom and tank accessories. It has the characteristics of long service life, corrosion resistance, high temperature resistance, high pressure resistance and scale prevention. It is the main equipment of oil depot. Large-scale oil storage tank is mainly used in refineries, oilfields, oil depots and other industries. The oil storage tanks mainly adopt A537CL1, Q345R, 16MnDR, Q370R, S30408, SU30408, A516 grade 70, A516 grade 60 etc. steel grades. Large-scale oil storage tanks are divided into fixed-roof tanks, floating-roof tanks and spherical tanks according to structure.

Standards of oil storage tank

API 650

API 650, API STD 650 Welded Tanks for Oil Storage, is the most widely used standard for global tank construction and procurement. API 650 tank is commonly used for oil, gasoline, diesel, chemical and production water storage. API 650 tanks are located in refineries, docks, pipelines and production facilities throughout the United States. API 650 specifies the design, processing, welding, inspection and installation procedures for storage tanks.

Read More

API 620

API 620 Design Standard is a specification for design and construction of large, welded, low pressure storage tanks. API 620 tanks are used for products which have high internal pressure such as liquefied natural gas (LNG) and cryogenic tanks. API 620 tanks can store contents at a higher pressure (maximum 15 pounds per square inch (PSI) of gas or vapor storage) and lower temperature (-325 degrees F to 250 degrees F) than API 650.

Read More

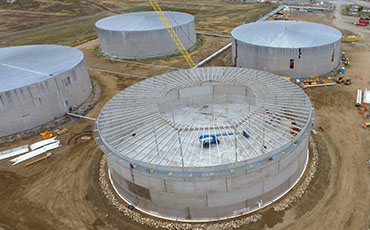

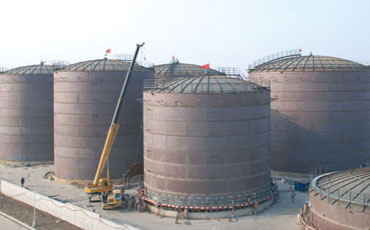

Main Projects

Our main achievements in large-scale oil storage tanks in recent years are: over 160,000 cubic meters LNG low-temperature tanks - 12 sets ; over 20,000 cubic meters low-temperature tanks - more than 20 sets ; 50,000 - 150,000 cubic meters crude oil tanks - more than 100 sets ; all kinds of chemical storage tanks below 50,000 cubic meters and supporting installation projects, etc. The projects under construction are highly praised by the owners, supervisors and general contractors.

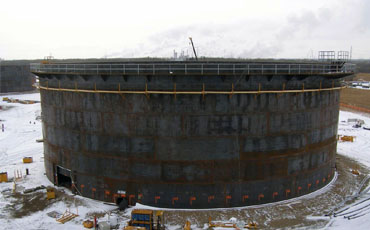

  • Double-Layer Low Temperature Storage Tank Project
    OUR PROJECT
    Double-Layer Low Temperature Storage Tank Project
    50,000 cubic meters
  • LPG Receiving Station Project
    LPG Receiving Station Project

    The project consists of four 160,000 cubic meters LPG tanks and supporting projects.

    VIEW PROJECT

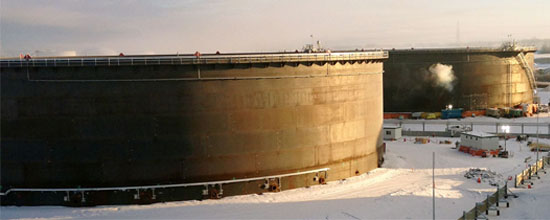

  • Venezuela Crude Oil Tank Project
    Venezuela Crude Oil Tank Project

    The project has 8 sets of 110,000 cubic meters crude oil tanks and 2 sets of 80,000 cubic meters crude oil tanks.

    VIEW PROJECT

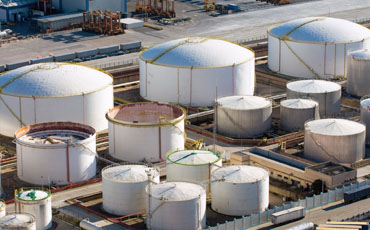

  • Storage Tank Project in Chemical Zone
    Storage Tank Project in Chemical Zone

    The project covers an area of 220,000 square meters. There are three tank groups in the tank area.

    VIEW PROJECT
  • Petroleum Transfer, Storage and Transportation Project
    Petroleum Transfer, Storage and Transportation Project

    BBN steel undertakes the production and installation of the first 6 sets of 100,000 cubic meters crude oil storage tanks.

    VIEW PROJECT

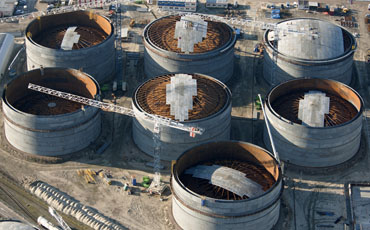

  • LPG Cryogenic Tank Project
    LPG Cryogenic Tank Project

    The design volume of single tank is 160,000 cubic meters, the inner diameter of outer tank is 82.0 meters, and the height is 49.5 meters.

    VIEW PROJECT
  • LPG Cryogenic Tank Project
    LPG Cryogenic Tank Project

    Tank capacity: 120,000 cubic meters, 1 set. Inner tank diameter: 69000mm, inner tank height: 34600mm, outer tank diameter: 70800mm, outer tank height: 47025mm (vault height).

    VIEW PROJECT

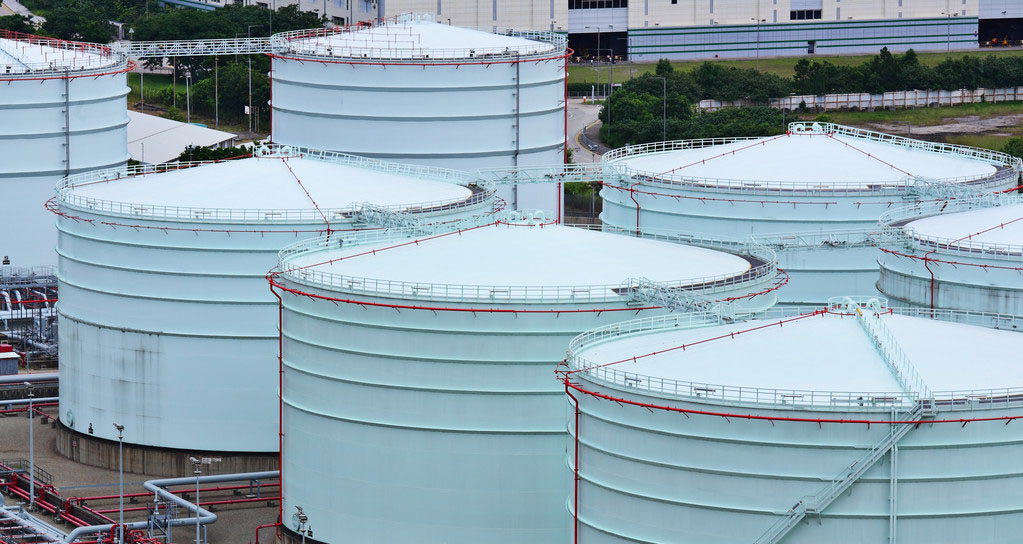

  • Crude Oil Tank Area Project
    Crude Oil Tank Area Project

    BBN steel is mainly responsible for the manufacture and installation of 47 crude oil tanks in the tank area.

    VIEW PROJECT

CHECK MORE PROJECTS+

238

Completed Projects

120

ENGINEERING TECHNICIAN

465

Satisfied Clients

34

Certificates And Award

Professional design team

BBN steel specializes in the engineering, fabrication and erection of large diameter and volume crude oil storage tanks. Our highly qualified engineering specialists help you to choose the tank configuration based on your specific requirements and process design. We can design tank drawing for you. And you may also send us drawing, and we will arrange production according to your drawing.

Inner floating roof tank design

API-650 Oil Tank Roof design
Learn more

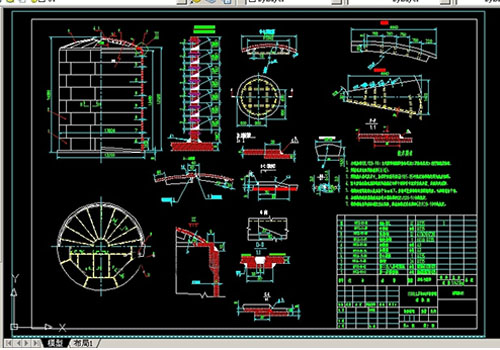

15000m³ steel floating roof tank CAD drawing
Learn more
we provide high level design solution for you!
request a quote

General Contractor of Petrochemical Engineering Construction

After years of development, BBN steel has been a professional and significant oil storage tank production and installation enterprise in the industry. We have qualifications for design and manufacture of first, second and third pressure vessels. We are qualified for general contracting of petrochemical engineering construction. BBN steel qualification covers the main engineering, supporting engineering and production auxiliary engineering of petroleum, natural gas, chemical industry and petrochemical industry, etc.

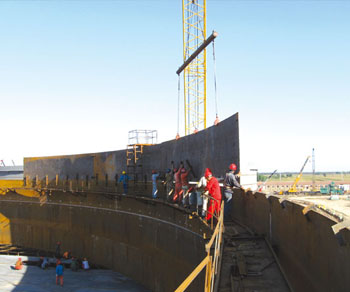

Automatic submerged arc welding

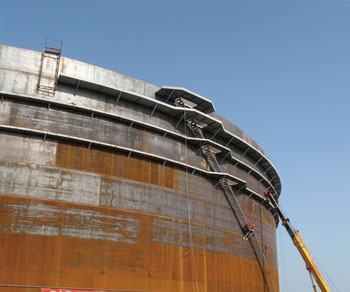

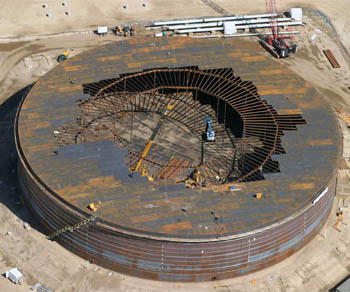

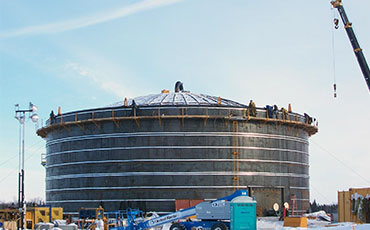

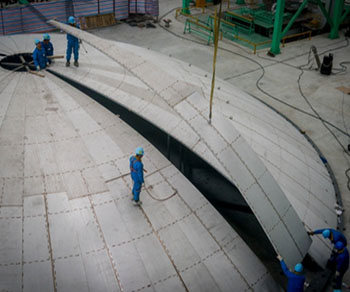

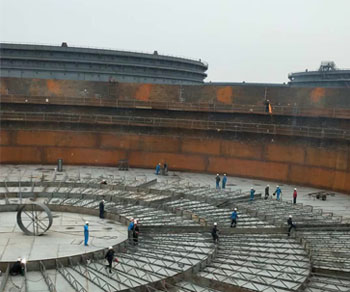

Construction of Oil Tank Roof

For more construction technology+

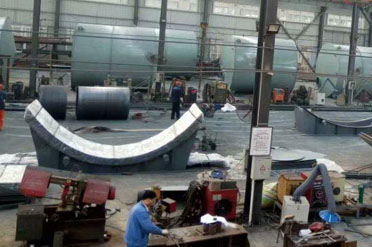

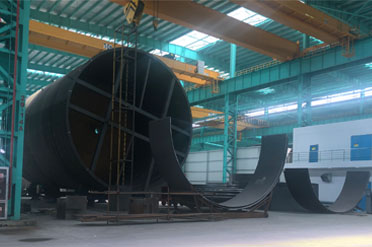

Processing Equipment

At present, we have large, medium and small gantry five-face machining centers,Work bench boring and milling machining, Floor-type boring machine, horizontal lathes, Gate-type submerged arc welding machine, plasma welding machine, shielded metal arc welding machine, CNC bending machine(3000T) horizontal milling and other equipment.

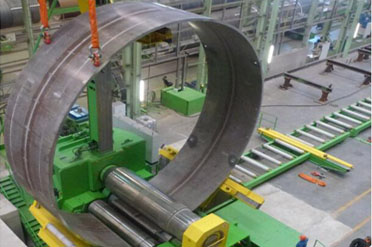

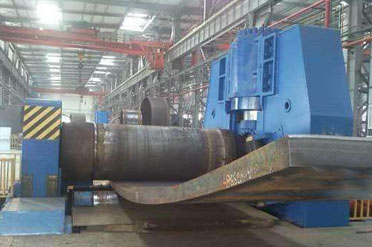

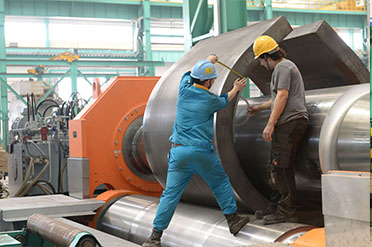

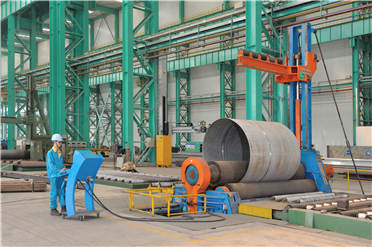

Rolling machine

3 Rollers Electric Sheet Metal Rolling Machine

Veneer reeling machine (four-roll)

Roll bending machine

Furling plate round machine

CNC Four Roller Steel Plate Bending Rolling Machine

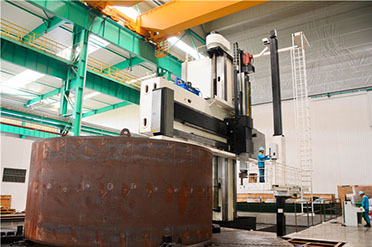

CNC turning and milling center

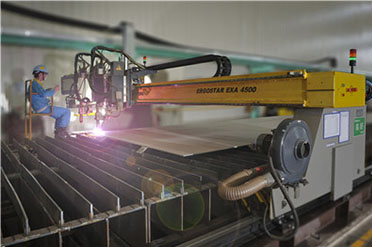

Plasma cutting machine

See More+

We can provide an experienced team to oversee the installation of your tank
