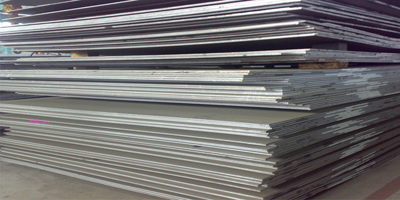

EN10025 S235J2 Carbon steel plate Equivalent Material

EN10025 S235J2 Carbon steel plate material number is 1.0117. S235J2 steel is a kind of common carbon steel material which can be readily welded to other weldable steel. With its low carbon equivalent, it possesses good cold-forming properties. The S235J2 steel plate is produced by fully killed steel process and supplied in normalized or controlled rolling condition.

EN 10025 S235J2 steel material can be produced into S235J2 steel sheet, S235J2 steel plate , S235J2 steel pipe , S235J2 steel sheet bar and S235J2 profile steel. S235J2 steel is widely used in shipbuilding, construction, machinery manufacturing, alloy steel plate size can be produced according to customer requirements..

EN10025 S235J2 Carbon steel plate Chemical composition(%)
C≤0.19, Mn≤1.50, P≤0.035, S≤0.035, Cu≤0.060

EN10025 S235J2 Carbon steel plate Mechanical properties
Yield strength Mpa:175-235
Tensile strength Mpa:340-510
Elongation(%):21-26
Impact Energy:-20, 27J

Equivalent grades of grade S235J2 (1.0117)

EN10025 S235J2 Carbon steel plate Specification
Thickness: 0.3-500mm
Width: 1000mm, 1220mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm
Length: 2m, 2.44m, 5.8m, 6m, 8m, 11m, or as required
Surface: black painted, PE coated, Galvanized, color coated
Technique: Hot rolled, Cold rolled
Surface Treatment: Black painted, PE coated, Galvanized

Bebon International has sufficient stock supply of EN10025 S235J2 Carbon steel plate.If you urgently need EN10025 S235J2 Carbon steel plate, please contact us. We will offer best quality and fast delivery time about EN10025 S235J2 Carbon steel plate. please believe us.
