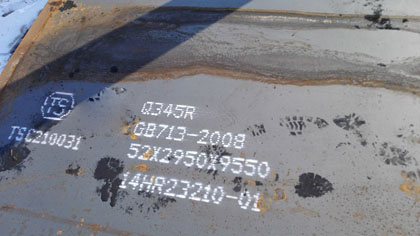

GB713 Q345R Pressure Vessel And Boiler Steel Plate

GB713 Q345R Pressure Vessel And Boiler Steel Plate Chemical Composition and Mechanical Property

Grade	C%	SI%	Mn%	Cr%	Ni%	Mo%	Nb%	V%	P%	S%	Alt%
Q345R	≤O.20	≤0.55	1.20-1.60						≤0.025	≤0.015	≥0.020

Steel Grade	Thickness, in mm	Tensile Strength	Yield Strength, min	Elongation, %, min
Q345R	3<T≤16	510-640	345	21
	16<T≤36	500-630	325
	36<T≤60	490-620	315
	60<T≤100	490-620	305	20
	100<T≤150	480-610	285
	150<T≤200	470-600	285

GB713 Q345R Pressure Vessel And Boiler Steel Plate Application

GB713 Q345R Pressure Vessel And Boiler Steel Plate are used in Pressure Vessel,Boiler,Storage Tanks and Heat Exchanger in Oil,Gas Project.

GB713 Q345R Pressure Vessel And Boiler Steel Plate Other Name

GB713 Q345R Boiler steel plate,GB713 Q345R Pressure Vessel Steel plate, GB713 Q345R Storage Tanks Steel plate. GB713 Q345R Heat Exchanger Steel Plate .

Additional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

Other Terms

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
