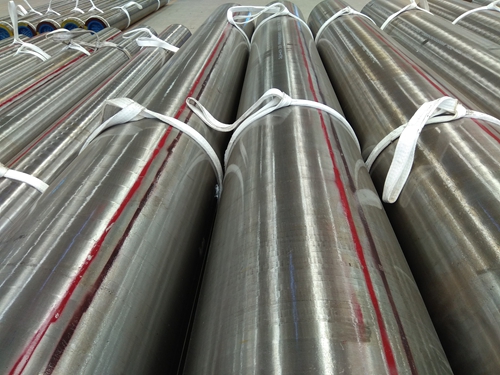

DIN17175 13CrMo44 boiler steel pipe

DIN17175 13CrMo44 boiler steel pipe Chemical Composition and Mechanical Property

Grade	Material	C	Si	Mn	P	S	Cr	Mo
13CrMo44	1.7335	0.10-0.18	0.10-0.35	0.40-0.70	0.035	0.035	0.70-1.10	0.45-0.65

Grade	Material	Tensile strength N/mm2	Yield strength thickness,mm			Elongation (L=5do)		Notch impact energy
			≤16	>16≤40	>40≤60
			N/mm2 min
13CrMo44	1.7335	440-590	290	290	280	22	20	34

DIN17175 13CrMo44 boiler steel pipe Application

DIN17175 13CrMo44 boiler steel pipe applies to seamless tubes including tubes for headers of heat-resistant steels which are used in the construction of boilers,pipe-lines,pressure vessels etc.

DIN17175 13CrMo44 boiler steel pipe Other Name

DIN17175 13CrMo44 boiler steel pipe, 13CrMo44 boiler steel pipe, DIN17175 13CrMo44 pipe, 13CrMo44 steel pipe

Additional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

Other Terms

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
