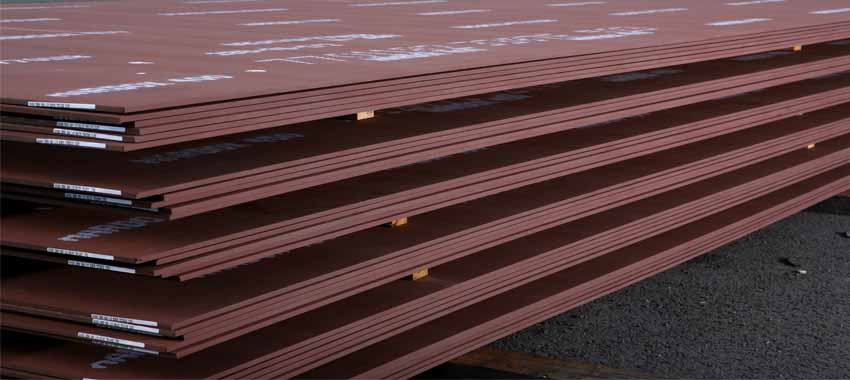

DIN 17102 StE255 Automobile structure steel plate

DIN 17102 StE255 Automobile structure steel plate Chemical Composition and Mechanical Property

Grade	C ≤	Si	Mn	P ≤	S ≤	N ≤	Al ≥	Cr ≤	Cu ≤	Mo ≤	Ni ≤	Nb ≤	Ti ≤	V ≤	Nb+Ti+V ≤
StE255	0.18	≤0.40	0.50	0.035	0.030	0.020	0.020	0.30	0.20	0.08	0.30	0.03	---	---	0.05

Grades

Tensile Strength R_m for
product thicknesses s,in mm
N/mm²

UpperYield StressR_eH²) for product thicknesses s,in mm
N/mm² min.

Elongation after fracture³)
(L_o=5d_o) % min.

Mandrel diameter for bend test 4), 5)

s≤70

70＜s≤85

85＜s≤100

100＜s≤125

125＜s≤150

s≤16

16＜s≤35

35＜s≤50

50＜s≤60

60＜s≤70

70＜s≤85

85＜s≤100

100＜s≤125

125＜s≤150

Longitudinal

Transverse 6)

StE255

360~480

350~470

340~460

330~450

320~440

255

245

235

225

215

205

195

DIN 17102 StE255 Automobile structure steel plate Application

StE255 steel plate can be used in Automobile industry, building material, kitchen sinks/cutlery, structure parts, etc.

DIN 17102 StE255 Automobile structure steel plate Other Name

DIN 17102 StE255 steel plate, StE255 Automobile structure steel plate

Additional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

Other Terms

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
