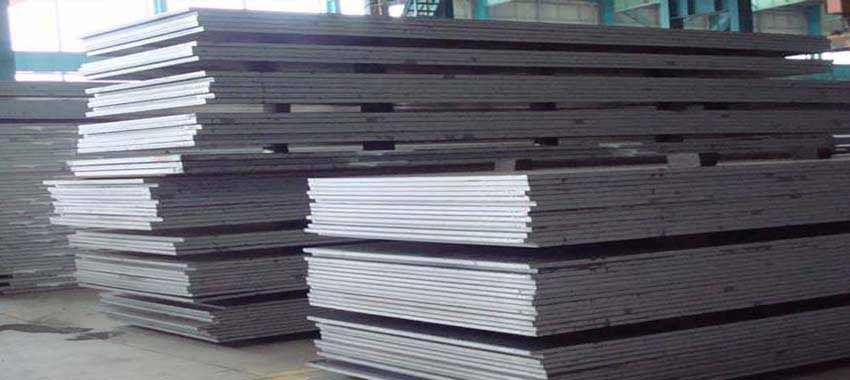

DIN 17102 EStE420 Automobile structure steel plate

DIN 17102 EStE420 Automobile structure steel plate Chemical Composition and Mechanical Property

Grade	C ≤	Si	Mn	P ≤	S ≤	N ≤	Al ≥	Cr ≤	Cu ≤	Mo ≤	Ni ≤	Nb ≤	Ti ≤	V ≤	Nb+Ti+V ≤
EStE420	0.20	0.10~0.60	1.00~1.70	0.025	0.015	0.020	0.020	0.30	0.20	0.10	1.00	0.05	---	0.20	0.22

Grades

Tensile Strength R_m for
product thicknesses s,in mm
N/mm²

UpperYield StressR_eH²) for product thicknesses s,in mm
N/mm² min.

Elongation after fracture³)
(L_o=5d_o) % min.

Mandrel diameter for bend test 4), 5)

s≤70

70＜s≤85

85＜s≤100

100＜s≤125

125＜s≤150

s≤16

16＜s≤35

35＜s≤50

50＜s≤60

60＜s≤70

70＜s≤85

85＜s≤100

100＜s≤125

125＜s≤150

Longitudinal

Transverse 6)

EStE420

530~680

520~670

510~660

500~650

490~640

420

410

400

390

385

375

365

355

345

2.5a

3.5a

DIN 17102 EStE420 Automobile structure steel plate Application

EStE420 structure steel plate is suitable used in automotive, metal, container, machining parts, etc.

DIN 17102 EStE420 Automobile structure steel plate Other Name

EStE420 Automobile structure steel plate, DIN 17102 EStE420 structure steel plate

Additional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

Other Terms

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
