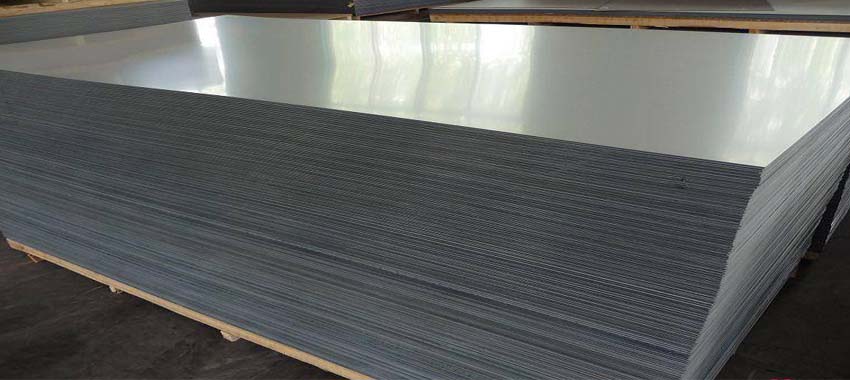

A537CL1+316L Clad steel plate

A537CL1+316L Clad steel plate

A537CL1+316L Clad steel plate Chemical Composition and Mechanical Property

Grade

Chemical Composition(%)

C max

Si

Mn

P max

S max

A537 Class 1(A537CL1)

0.24

0.13-0.55

0.92-1.72

0.035

0.035

Grade

Mechanical Property



Tensile Strength(MPa)

Yield Strength(MPa) min

% Elongation in 2 in.(50mm) min

Impacting Test Temperature(°C)



A537 Class 1(A537CL1)

450-585

310

18

-20,40,-60











Grade



C



Mn



P





S





Si



Cr

Ni Mo Ni



Cooper



316L(S31603) 0.030 2.0 0.045 0.030 0.75 16.0-18.0 10.0-14.0 2.00-3.00 0.10 -
Grade

Yield strength

(N/mm2), min

Tensile strength (N/mm2), min

Elongationin 2 in. (50mm), %, min
Hardness, max
Brinell Rockwell B
Cold bend
Austenitic (Chromium-Nickel) (Chromium-Manganese-Nickel)
316L(S31603)
25 170
70 485
40
217 95
not required



A537CL1+316L Clad steel plate Application

A537CL1+316L Clad steel plates are used in Construction of Bridges, Highway Construction and Other Engineering construction.

A537CL1+316L Clad steel plate Other Name

A537CL1+316L Clad steel plate, A537CL1 steel plate, 316L steel plate

Additional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

Other Terms

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
