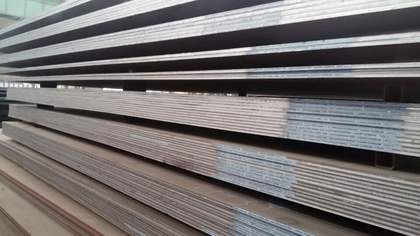

ASTM A516 Grade 55(A516GR55) Pressure Vessel And Boiler Steel Plate

ASTM A516 Grade 55(A516GR55) Pressure Vessel And Boiler Steel Plate Chemical Composition and Mechanical Property

Grade	Chemical Composition(%)
Grade	C	Mn	Si	P max	S max
A516 Grade 55 (A516GR55)	0.18-0.26	0.55-1.3	0.13-0.45	0.035	0.035
Grade	Mechanical Property
Grade	Tensile Strength(MPa)	Yield Strength(MPa) min	% Elongation in 2 in.(50mm) min	Impacting Test Temperature(°C)
A516 Grade 55 (A516GR55)	380-515	205	23	-20,40,-60

ASTM A516 Grade 55(A516GR55) Pressure Vessel And Boiler Steel Plate Application

ASTM A516 Grade 55(A516GR55) Pressure Vessel And Boiler Steel Plate are used in Pressure Vessel,Boiler,Storage Tanks and Heat Exchanger in Oil,Gas Project.

ASTM A516 Grade 55(A516GR55) Pressure Vessel And Boiler Steel Plate Other Name

ASTM A516 Grade 55(A516GR55) Boiler steel plate,ASTM A516 Grade 55(A516GR55) Pressure Vessel Steel plate ,ASTM A516 Grade 55(A516GR55) Storage Tanks Steel plate. ASTM A516 Grade 55(A516GR55) Heat Exchanger Steel Plate .

Additional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

Other Terms

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
