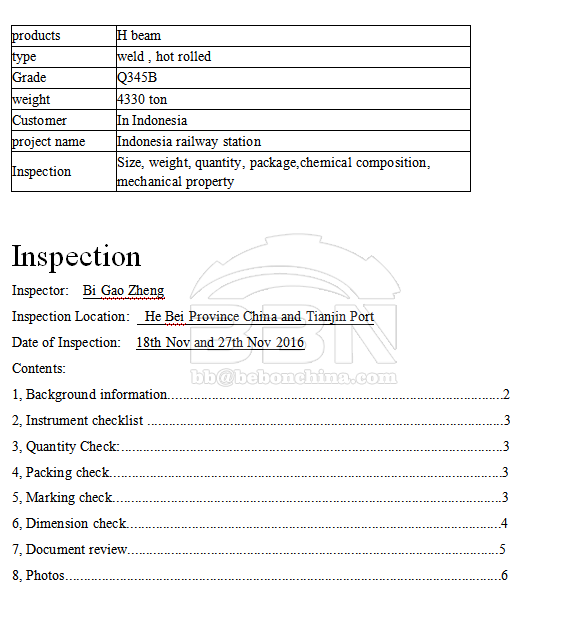

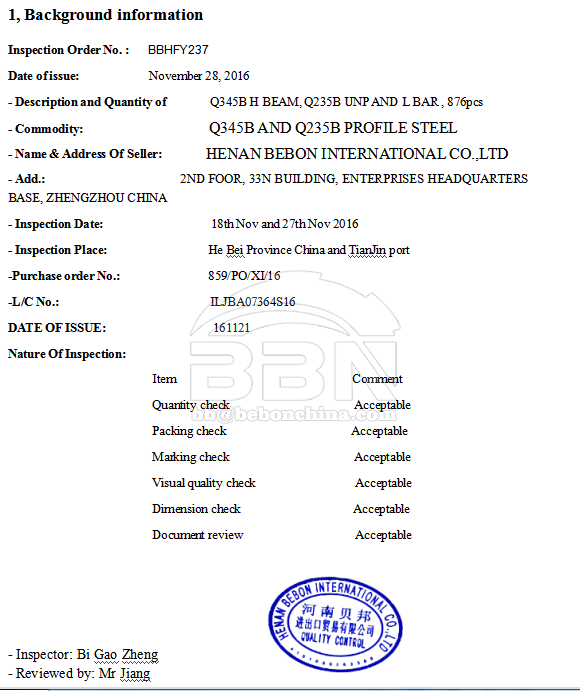

2, Instrument checklist

During the inspection, the following instrument calibration status has been checked for inspection:

No. MEASURING INSTRUMENT DESCRIPTION CALIBRATION CERTIFICATE NO.

(Including measuring range and equipment No.) STATUS (OPTIONAL)

a. Steel tape (IND-TJ-JC20m-48) EFFECTIVELY --

b. Vernier caliper (C31799/B9204) EFFECTIVELY --

b. Thickness gauge(594377907470) EFFECTIVELY --

Remark: L/C REF: ILJBA07364S16 DATED 161121 AND NAME OF APPLICANT BANK (BANK NEGARA INDONESIA-PT (PERSERO) JAKARTA)

3. Quantity Check:

Reference documents: PO (purchase order): No. 859/PO/XI/16

Method of quantity check Quantity check by pieces.

The cargoes had been stacked at workshop when BEBON inspector arrived at inspection location. The

quantity check was performed by BEBON inspector as per PO provided by client, details were as below:

No. Description (mm) Req. Pieces Act. Pieces

1 HB Q345B AND WF Q345B 8353 8353

2 UNP Q235 350 350

3 Q235B L BAR 98 98

The number of actual pieces was acceptable as per PO provided by client.

4. Packing check

Reference documents: PO (purchase order): No. 859/PO/XI/16, DATE NOV 22nd 2016

All of profile steel were bundle packing. Each head of bundle was fastened by four steel band

5. Marking check

Reference documents: PO (purchase order): No. 859/PO/XI/16, DATE NOV 22nd 2016

During the inspection, BEBON inspector selected 10% bundle randomly as per size for marking check, was found on one surface of goods. Details were as below:

MILL NAME, PRODUCT NAME, SPECIFICATION, LOT NO. STEEL GRADE.STANDARD

Q345B H beam

Result:

The result of marking check was acceptable as per PO provided by client.

6. Dimension check:

Reference documents:

PO (purchase order): No. 859/PO/XI/16, DATE NOV 22nd 2016

During the inspection, dimension check was performed randomly for the 10% bundles below by BEBON inspector. Details were as follow:

PRODUCTION

SIZE

CHECKED SIZE

HB Q345B

150*150*7*10

152.5*149.4*6.9*9.8

HB Q345B

200*200*8*12

199.5*198*7.7*11.4

HB Q345B

250*250*9*14

251*248*8.6*13.2

HB Q345B

300*300*10*15

298.5*297.5*9.6*14.6

WF Q345B

150*75*5*7

148.3*75.7*4.7*6.8

WF Q345B

200*100*5.5*8

198.9*99.5*5.1*7.7

WF Q345B

250*125*6*9

249*124.2*5.4*8.4

WF Q345B

300*150*6.5*9

298*147.5*6.2*8.5

WF Q345B

350*175*7*11

349*173.5*6.5*10.8

WF Q345B

400*200*8*13

398*198*7.9*12.5

WF Q345B

450*200*9*14

449.2*199.5*8.7*13.7

WF Q345B

500*200*10*16

499.8*197.6*9.6*15.1

WF Q345B

600*200*11*17

599.8*198.5*10.7*16.4

UNP Q235B

320*90*10*14

319*89.2*10.3*13.8

EA Q235B

160*160*12

158*158*11.2

EA Q235B

200*200*24

198*198*23.1

Remark:

1. Two measured points were selected for thickness form the longitudinal edge with micrometer.

2. Length and width of goods were measured from one end to another end along the edge of plate with steel tape.

3. Visual Quality Check:

Reference documents: PO (purchase order): No. 859/PO/XI/16, DATE NOV 22nd 2016

During the inspection, visual quality check was performed randomly by BEBON inspector for the 10% bundles quantity.

Details were as below:

a) No visible defects, such as damage, crack, dent, etc. were found on the surfaces of plates during the inspection.

b) Due to limited conditions on site, just partial available surfaces were checked by Bebon inspector.

c) Maximum rust grade allowable is within Grade B as per SSPC-Vis 1

7. Document review:

Reference documents:

1.1 PO (purchase order): No. 859/PO/XI/16, DATE NOV 22nd 2016

1.2 Packing list No. Invoice Number BBHFY237 Date:2016-11-23

1.3 Standard: GB/T 11263-1998 and GB/T706-2008

Mill test certificates of profile steel were provided by mill and indicated that the size, mechanical properties, chemical properties etc. They were according to standard details GB/T 11263-1998 and GB/T706-2008 were as below:

Page No Certificate No Lot No Size Pcs Date
1 B16-10-1-0633 JH016102911 150*150*7*10 28 2016-11-1
2 B16-10-1-0648 JH016102439 200*200*8*12 159 2016-10-26
3 B16-10-1-0651 JH016101433 250*250*9*14 75 2016-10-16
4 B16-10-1-0654 JH016101872 300*300*10*15 12 2016-10-20
5 B16-10-1-0513 JH016090437 150*75*5*7 2 2016-9-29
6 B16-10-1-0516 JH016102754 200*100*5.5*8 197 2016-10-29
7 B16-10-1-0519 JH016102526 250*125*6*9 121 2016-10-27
8 B16-10-1-0621 JH016102621 300*150*6.5*9 108 2016-10-28
9 B16-10-1-0623 JH016100811 350*175*7*11 26 2016-10-11
10 B16-10-1-0658 JH016111038 400*200*8*13 48 2016-11-12
11 B16-10-1-0625 JH016101326 450*200*9*14 25 2016-10-15
12 B16-10-1-0628 JH016101115 500*200*10*16 10 2016-10-13
13 B16-10-1-0631 JH016101506 600*200*11*17 24 2016-10-17
14 2016-11-103 C-4137 320*90*10*14 35 2016-11-25
15 2016-11-103 C-5216 160*160*12 4 2016-11-25
16 2016-11-103 C-5235 200*200*24 2 2016-11-25

Result:

The result of documents review was acceptable as per PO.

The lot number of MTC is matching goods date.

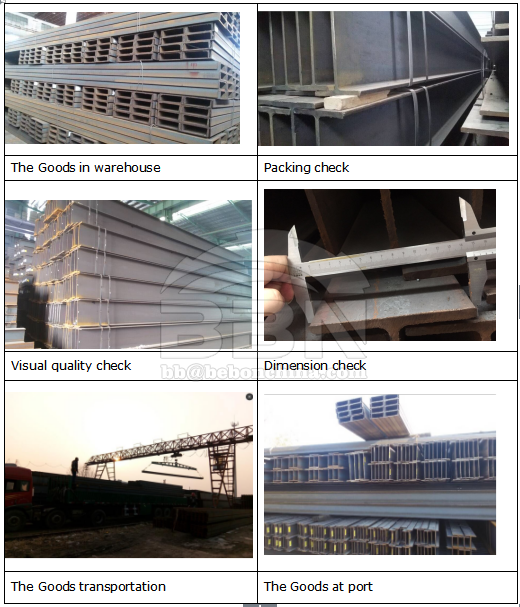

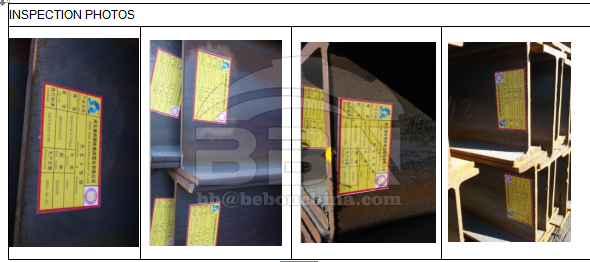

8. Attachment: Photos during inspection

Q345B H beam

Q345B H beam
