CUTTING PROCESSING SERVICES

As one of the most professional Steel Enterprise in China. BEBON Steel has about 10 years experience in this field. In order to offering better service to our customers, we keep improving in every respect. We can cutting different standard steel products for our customers, like ASTM, AISI,JIS, DIN,BS,GB. We can also tailor-made these machined steel products based on your drawing or request.

Cutting of numerical control technical.

NC Cutting technical standard
1：Verticality of the standard in NC Cutting
Thickness of steel plate（mm）		Vertical（mm）
＜100 100-150 150-200 200-250 250-300 300-400		＜3 3-4 4-5 5-6 6-7 7-9
2：Cutting angle of deviation （tolerance in cutting ：±mm）
	thickness（mm）
	≤25 1.5		＞25-50 2	＞50-100 2.5	＞100-200 3	＞200-300 5
3：The way of Eliminate stress
Mn steel plate ： the machine could cut in the way of ARC.
4：The flatness will be the same with WGJ GIS709
GB Standard：Square meters≤7mm Internal control standards：4mm Carbon and Alloy steel plate： It could use the Internal control standards Excellent carbon steel plate：According to GB standard
5：Machining parts machining allowance
Thickness(mm) ＜100 ＜200 ＜300 ＞300	Unilateral allowance （mm） 5－8 8－10 10－15 ＞20

6. The Cutting Way
A CNC flame cutting，Line Cutting , water cutting, and Laser cutting.
B Cutting Thickness : 2mm -400mm.
C Cutting Width ： 25mm -4000mm
BEBON Advantage
With rich stock resource, complete production equipment, organized management system, we can ensure you that all our cutting products is excellent quality with most competitive price. If you are interested in our cutting products or cutting service or if you need technical support , please do not hesitate to contact us.

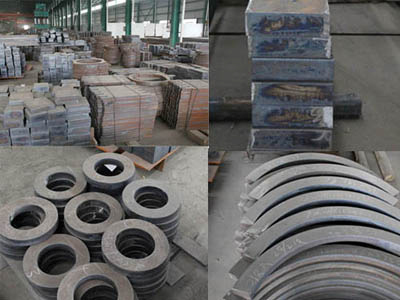

Cutting plate pictures for your reference:
