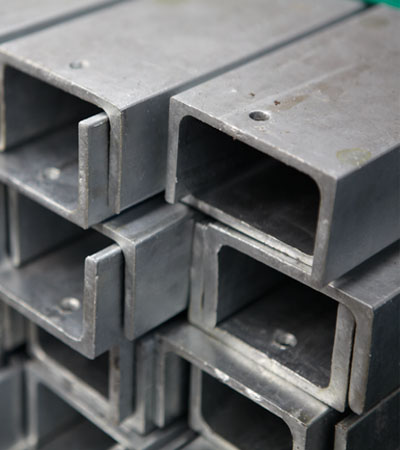

European standard Channel steel

Iterm		Size（mm）					Sectional Area (cm2)	Theortical Quantitye (kg/m)	x-x			y-y			y-y1	Z0
		h	b	tw	t	R			Ix	Wx	ix	Iy	Wy	Iy	Iy1
									(cm4)	(cm3)	(cm)	(cm4)	(cm3)	(cm)	(cm4)	(cm)
5		50	37	4.5	7	7	6.92	5.44	26	10.4	1.94	8.3	3.5	1.1	20.9	1.35
6.3		63	40	4.8	7.5	7.5	8.45	6.63	51	16.3	2.46	11.9	4.6	1.19	28.3	1.39
8		80	43	5	8	8	10.24	8.04	101	25.3	3.14	16.6	5.8	1.27	37.4	1.42
10		100	48	5.3	8.5	8.5	12.74	10	198	39.7	3.94	25.6	7.8	1.42	54.9	1.52
12.6		126	53	5.5	9	9	15.69	12.31	389	61.7	4.98	38	10.3	1.56	77.8	1.59
14	a	140	58	6	9.5	9.5	18.51	14.53	564	80.5	5.52	53.2	13	1.7	107.2	1.71
14	b	140	60	8	9.5	9.5	21.31	16.73	609	87.1	5.35	61.2	14.1	1.69	120.6	1.67
16	a	160	63	6.5	10	10	21.95	17.23	866	108.3	6.28	73.4	16.3	1.83	144.1	1.79
16	b	160	65	8.5	10	10	25.15	19.75	935	116.8	6.1	83.4	17.6	1.82	160.8	1.75
18	a	180	68	7	10.5	10.5	25.69	20.17	1273	141.4	7.04	98.6	20	1.96	189.7	1.88
18	b	180	70	9	10.5	10.5	29.29	22.99	1370	152.2	6.84	111	21.5	1.95	210.1	1.84
20	a	200	73	7	11	11	28.83	22.63	1780	178	7.86	128	24.2	2.11	244	2.01
20	b	200	75	9	11	11	32.83	25.77	1914	191.4	7.64	143.6	25.9	2.09	268.4	1.95
22	a	220	77	7	11.5	11.5	31.84	24.99	2394	217.6	8.67	157.8	28.2	2.23	298.2	2.1
22	b	220	79	9	11.5	11.5	36.24	28.45	2571	233.8	8.42	176.5	30.1	2.21	326.3	2.03
25	a	250	78	7	12	12	34.91	27.4	3359	268.7	9.81	175.9	30.7	2.24	324.8	2.07
	b		80	9	12	12	39.91	31.33	3619	289.6	9.52	196.4	32.7	2.22	355.1	1.99
	c		82	11	12	12	44.91	35.25	3880	310.4	9.3	215.9	34.6	2.19	388.6	1.96
28	a	280	82	7.5	12.5	12.5	40.02	31.42	4753	339.5	10.9	217.9	35.7	2.33	393.3	2.09
	b		84	9.5	12.5	12.5	45.62	35.81	5118	365.6	10.59	241.5	37.9	2.3	428.5	2.02
	c		86	11.5	12.5	12.5	51.22	40.21	5484	391.7	10.35	264.1	40	2.27	467.3	1.99
32	a	320	88	8	14	14	48.5	38.07	7511	469.4	12.44	304.7	46.4	2.51	547.5	2.24
	b		90	10	14	14	54.9	43.1	8057	503.5	12.11	335.6	49.1	2.47	592.9	2.16
	c		92	12	14	14	61.3	48.12	8603	537.7	11.85	365	51.6	2.44	642.7	2.13
36	a	360	96	9	16	16	60.89	47.8	11874	659.7	13.96	455	63.6	2.73	818.5	2.44
	b		98	11	16	16	68.09	53.45	12652	702.9	13.63	496.7	66.9	2.7	880.5	2.37
	c		100	13	16	16	75.29	59.1	13429	746.1	13.36	536.6	70	2.67	948	2.34
40	a	400	100	10.5	18	18	75.04	58.91	17578	878.9	15.3	592	78.8	2.81	1057.9	2.49
	b		102	12.5	18	18	83.04	65.19	18644	932.2	14.98	640.6	82.6	2.78	1135.8	2.44
	c		104	14.5	18	18	91.04	71.47	19711	985.6	14.71	687.8	86.2	2.75	1220.3	2.42

Iterm	WEIGHT kg / m	DIMENSIONS (mm)				ΔΙΑΤΟΜΗ(cm2)	ΡΟΠΗ ΑΝΤΙΣΤΑΣΕΩΣ(cm3)
Iterm	WEIGHT kg / m	h	b	s	t	F	Wx	Wy
30 x 15	1,740	30	15	4,0	4,5	2,21	1,69	0,39
40 x 20	2,870	40	20	5,0	5,5	3,66	3,79	0,86
40 x 35	4,870	40	35	5,0	7,0	6,21	7,05	3,08
50 x 25	3,860	50	25	5,0	6,0	4,92	6,73	1,48
50 x 38	5,590	50	38	5,0	7,0	7,12	10,60	3,75
60 x 30	5,070	60	30	6,0	6,0	6,46	10,50	2,16
65 x 42	7,090	65	42	5,5	7,5	9,03	17,70	5,07
80	8,640	80	45	6,0	8,0	11,00	26,50	6,36
100	10,600	100	50	6,0	8,5	13,50	41,20	8,49
120	13,400	120	55	7,0	9,0	17,00	60,70	11,10
140	16,000	140	60	7,0	10,0	20,40	86,40	14,80
160	18,800	160	65	7,5	10,5	24,00	116,00	18,30
180	22,000	180	70	8,0	11,0	28,00	150,00	22,40
200	25,300	200	75	8,5	11,5	32,20	191,00	27,00
220	29,400	220	80	9,0	12,5	37,40	245,00	33,60
240	33,200	240	85	9,5	13,0	42,30	300,00	39,60
260	37,900	260	90	10,0	14,0	48,30	371,00	47,70
280	41,800	280	95	10,0	15,0	53,30	448,00	57,20
300	46,200	300	100	10,0	16,0	58,80	535,00	67,80
320	59,500	320	100	14,0	17,5	75,80	679,00	80,60
350	60,600	350	100	14,0	16,0	77,30	734,00	75,00
400	71,800	400	110	14,0	18,0	91,50	1020,00	102,00
