Nigeria 16724m3 Crude Oil Tank & 1590m3 Water Tank Project

1. Background Information

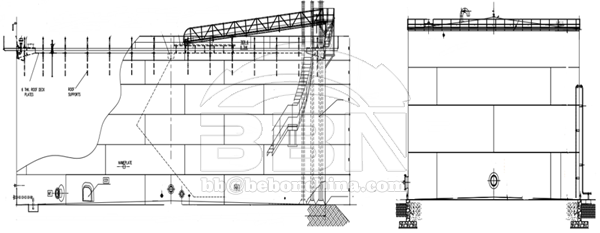

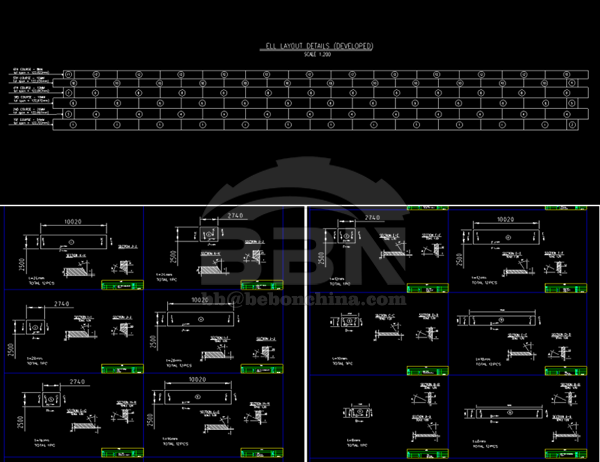

This project is belong to Nigerian Petroleum Development Company Ltd (NPDC), they are a subsidiary of Nigerian National Petroleum Corporation (NNPC). We have established a strong cooperative relationship with NNPC since 2017. They introduced our company to NPDC for this project. This project is a crude oil tank of 16724m3 & a water tank of 1590m3. For this project, BBN not only provided the raw material, but also provided prefabrication of raw material, including bending, painting, cutting, welding, drilling, beveling, galvanizing. We have professional engineers, they made drawing for every step of the production, and we sent all drawings to client confirm before doing production. Meanwhile, we also provided the ITP, PRODUCTION SCHEDULE to client, under this way, customer can control every step clearly . Finally, our customer also arranged the SGS company as the third-party to do inspection before shipment, and we arranged the shipment when everything was okay. After the customer received the goods, they were very satisfied with our service and quality. They also hope to establish a long-term cooperative relationship.Crude Oil Tank

2. Henan Bebon Iron&Steel Co. , Ltd Head Office&FactoryBebon steelBebon steel

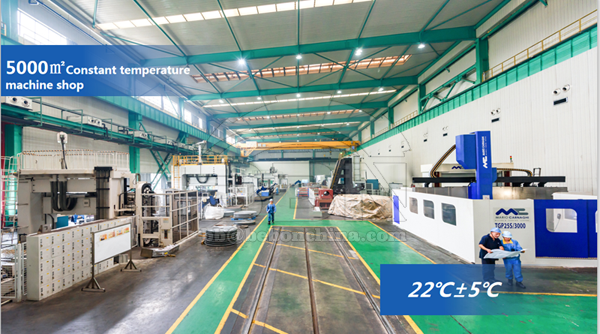

3. BBN Fabrication Workshop
BBN processing center is located in Shanghai. It covers an area of 200, 000 square meters , and the company aims to become the leading steel processing enterprise in China and abroad. We not only provide fabrication and installation, but also EPC construction service based on the information and the requirement from Client.
-------------------------------------------------------------------------------------------------------

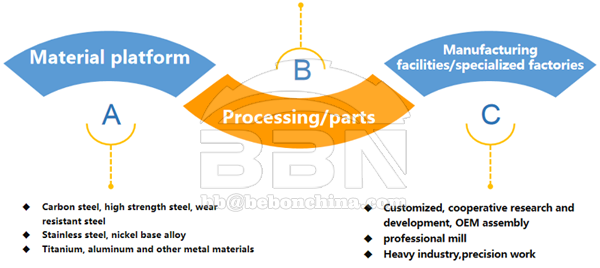

Professional material service provider and processing and manufacturing support provider - "one stop" steel service platform.
Cutting, grinding, forming, blanking, welding, heat treatment, machining, spraying, general assembly.BBN FabricationBBN FabricationBBN Fabrication

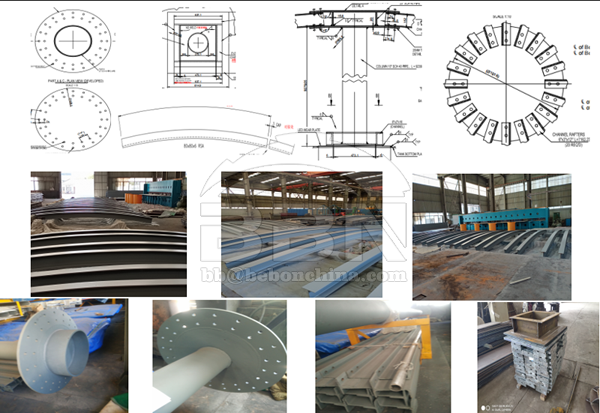

4. Tank Production In Workshop

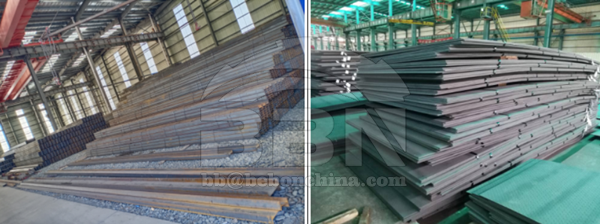

Raw MaterialTank Production

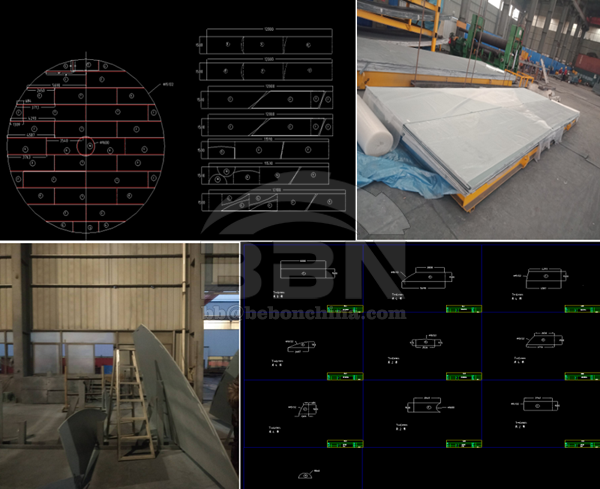

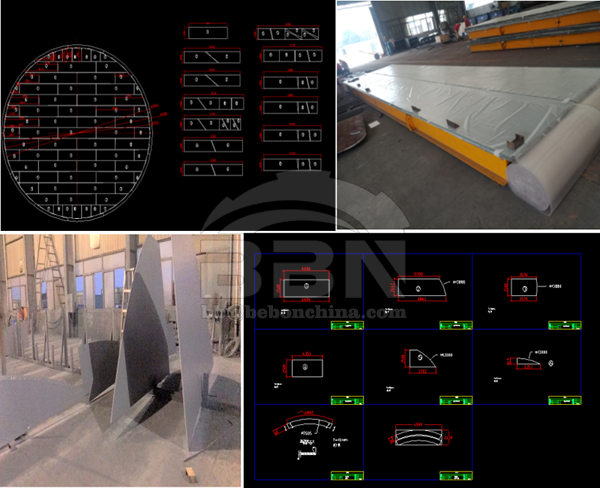

Bottom Plate Cutting & Painting & BevelingBottom Plate

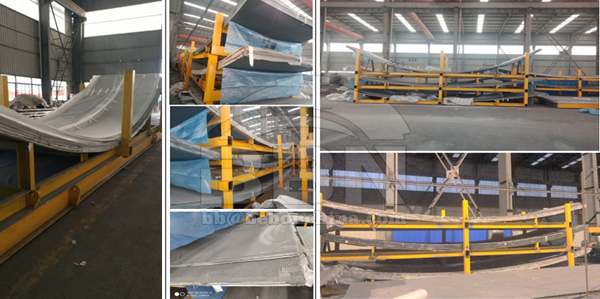

Shell Plate Bending & Painting & BevelingShell PlateShell Plate

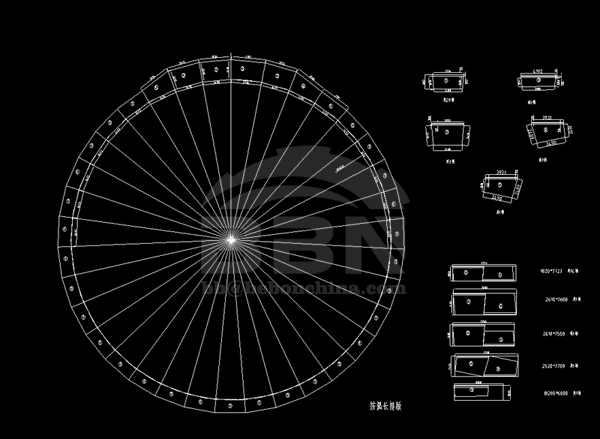

Roof Plate Bending & Painting & BevelingRoof Plate

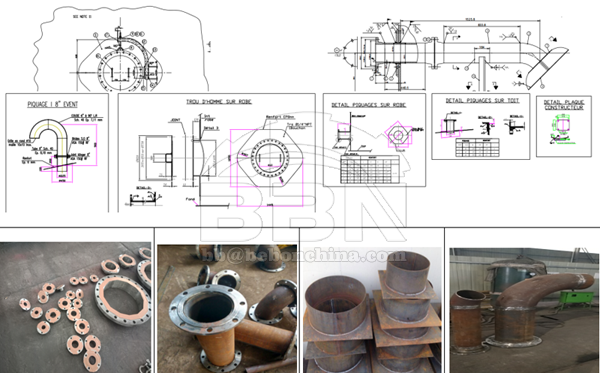

Nozzle & Manhole Cutting & Painting & Welding & DrillingNozzle & ManholeNozzle & Manhole

Windgirder Cutting & Galvanize &WeldingWindgirderWindgirder

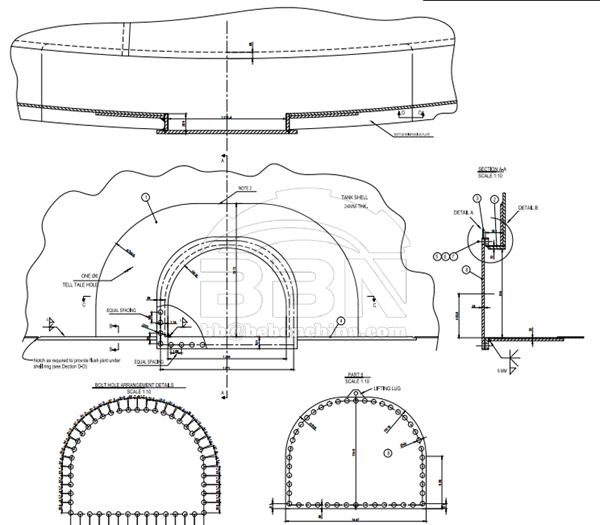

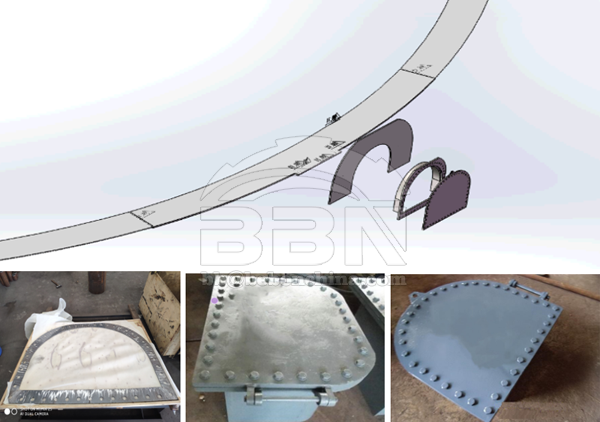

Clean Door Cutting & Painting & Welding & DrillingClean DoorClean Door

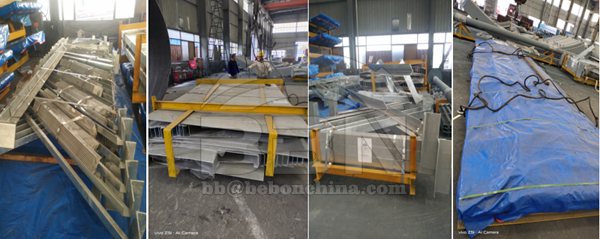

Roof Structure Cutting & Galvanize & Painting & Welding & DrillingRoof Structure

Spiral Stairway Cutting & Galvanize & Welding & DrillingSpiral Stairway

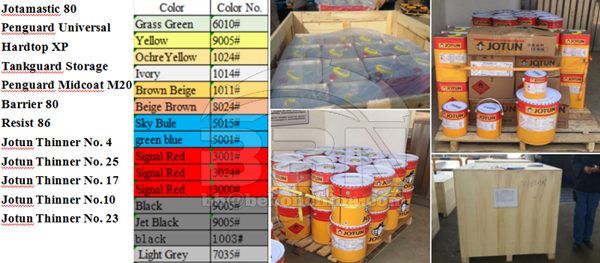

Coating For Tank ( Jotun Brand)Coating For Tank

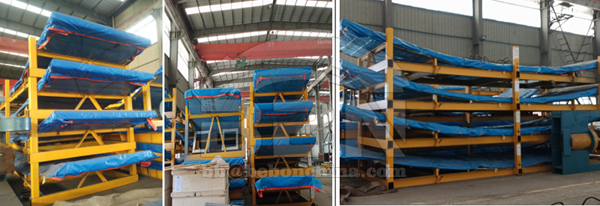

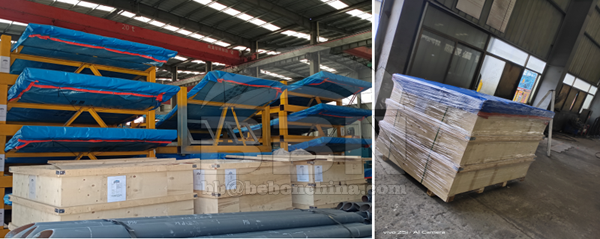

5. Package
As this kind of raw material has high request of surface and value is high too, so we have also adopted high packaging standard, the packaging method we use is iron frame + wooden pallet + waterproof paper + fumigation-free wooden plate + steel strip, which is not only convenient for loading , but also can protect raw material quality during transportation.

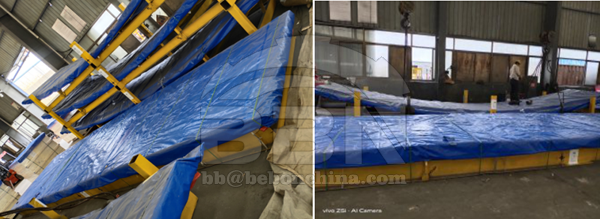

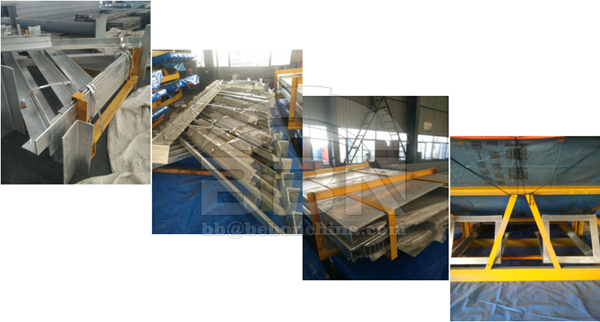

Tank Shell PlateTank Shell Plate

Tank Bottom PlateTank Bottom Plate

Tank Roof Plate & Other Structure SteelTank Roof Plate

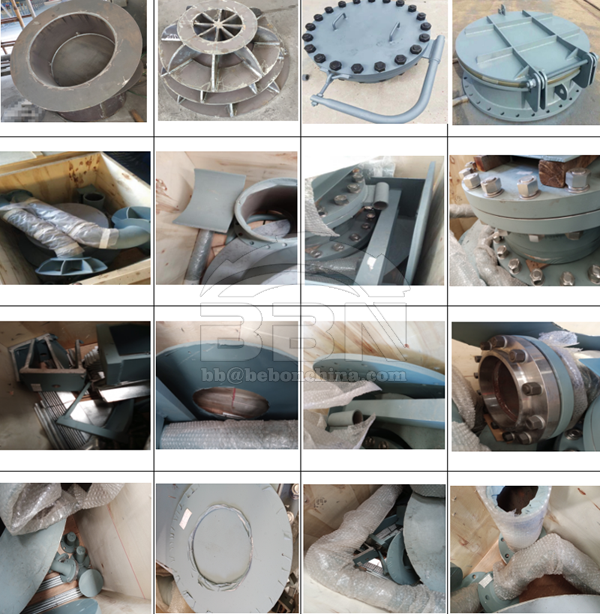

Nozzle & Manhole &Other PartsNozzle & Manhole

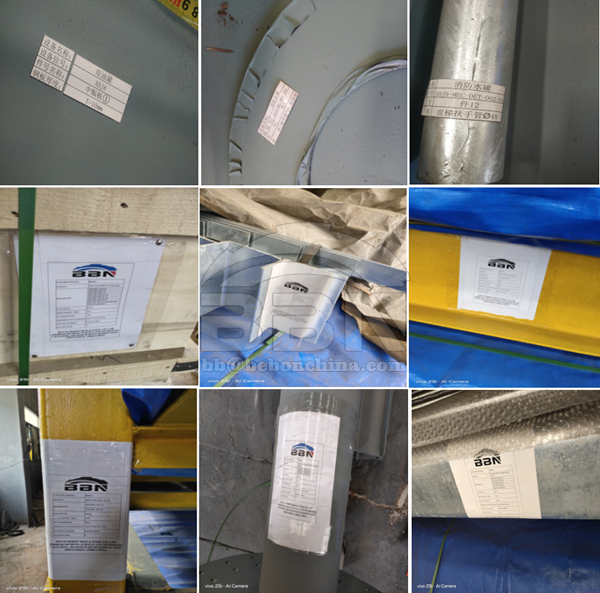

6. Mark & Label & Packing List

We made the label of each parts (the label included the corresponding drawing number, Part name, Qty), and we also sticked the final part list on outer package in order to make customer better able to distinguish the different parts name and also easy to install.Mark & Label

PACKING LIST
ITEM NO. PACKAGE NO. DESCRIPTION PCS PKG STYLE G.WEIGHT (KG) DIMENSION
L.(CM) W.(CM) H.(CM)
1 BB-001 ABJ9 TANK SHELL PLATE 1 Steel Frame Packing 31,200 960.0 290.0 200.0
2 BB-002 ABJ8 TANK SHELL PLATE 1 Steel Frame Packing 31,500 1000.0 290.0 110.0
3 BB-003 ABJ8 TANK SHELL PLATE 1 Steel Frame Packing 30,200 1000.0 290.0 110.0
4 BB-004 ABJ8 TANK SHELL PLATE 1 Steel Frame Packing 30,500 1000.0 290.0 110.0
5 BB-005 ABJ8 TANK SHELL PLATE 1 Steel Frame Packing 31,600 1000.0 290.0 110.0
6 BB-006 ABJ8 TANK SHELL PLATE 1 Steel Frame Packing 30,005 1000.0 290.0 110.0
7 BB-007 ABJ8 TANK SHELL PLATE 1 Steel Frame Packing 32,000 1000.0 290.0 110.0
8 BB-008 ABJ8 TANK SHELL PLATE 1 Steel Frame Packing 26,500 1000.0 290.0 110.0
9 BB-009 ABJ8 TANK SHELL PLATE 1 Steel Frame Packing 28,500 1000.0 290.0 110.0
10 BB-010 ABJ8 TANK BOTTOM PLATE 1 Steel Frame Packing 30,900 1050.0 260.0 65.0
11 BB-011 ABJ8 TANK BOTTOM PLATE 1 Steel Frame Packing 28,000 1050.0 260.0 65.0
12 BB-012 ABJ8 TANK BOTTOM PLATE 1 Steel Frame Packing 29,800 1050.0 260.0 65.0
13 BB-013 ABJ8 TANK BOTTOM PLATE 1 Steel Frame Packing 31,010 1050.0 260.0 65.0
14 BB-014 ABJ9 TANK BOTTOM PLATE&ROOF PLATE&ANNULAR PLATE 1 Steel Frame Packing 26,000 1050.0 260.0 80.0
15 BB-015 ABJ9 TANK PIPE&FITTING &NOZZLES&PLATEFORMSTRUCTURE&SPIRAL STAIR PARTS 1 Packing wooden cases 1,500 160.0 150.0 120.0
16 BB-016 ABJ9 TANK ROOF STRUCURE STEEL PARTS 1 Steel Frame Packing 1,100 1000.0 120.0 120.0
17 BB-017 ABJ8 TANK PIPE&FITTING &NOZZLES PARTS 1 Packing wooden cases 1,300 160.0 150.0 120.0
18 BB-018 ABJ8 TANK SPIRAL STAIR PARTS 1 Packing wooden cases 1,300 160.0 150.0 120.0
19 BB-019 ABJ8 TANK PLATFORM STRUCTURE STEEL PARTS 1 Steel Frame Packing 1,400 200.0 400.0 120.0
20 BB-020 ABJ8 TANK PLATFORM STRUCTURE STEEL PARTS 1 Steel Frame Packing 1,300 200.0 200.0 120.0
21 BB-021 ABJ8 TANK PLATFORM STEEL PLATE 1 Steel Frame Packing 10,200 420.0 240.0 800.0

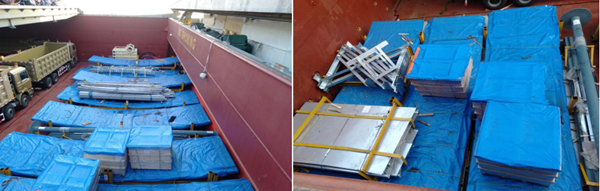

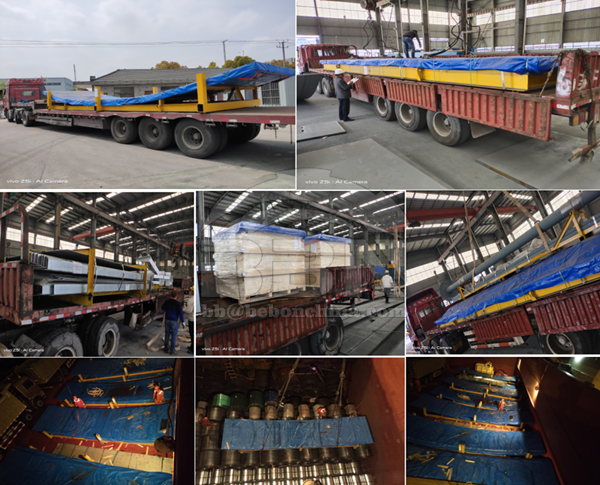

7. ShipmentWater TankCrude Oil Tank

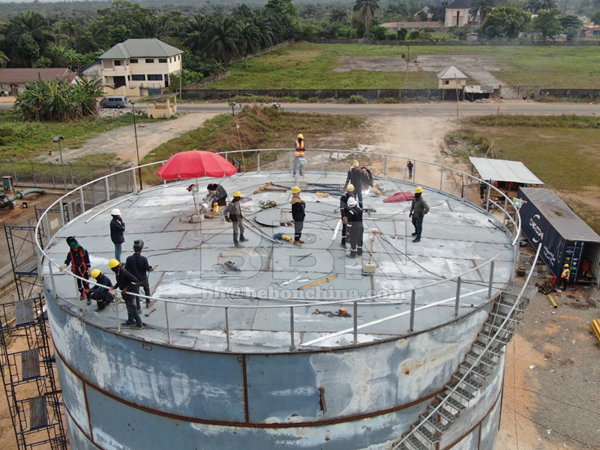

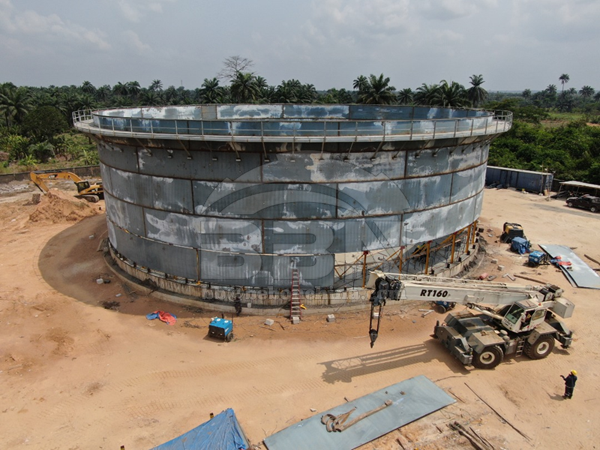

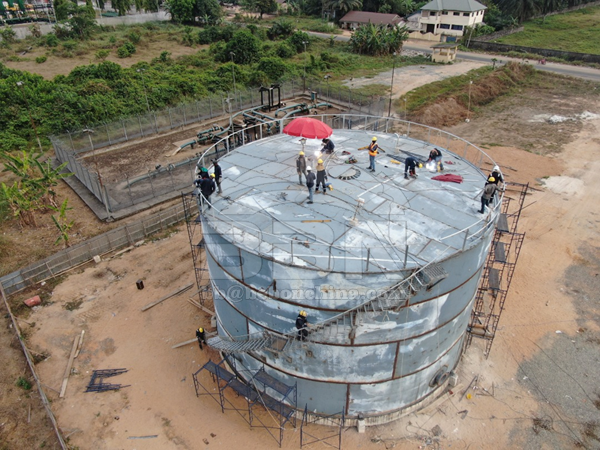

8. Installation On SiteCrude Oil TankCrude Oil TankCrude Oil TankCrude Oil Tank

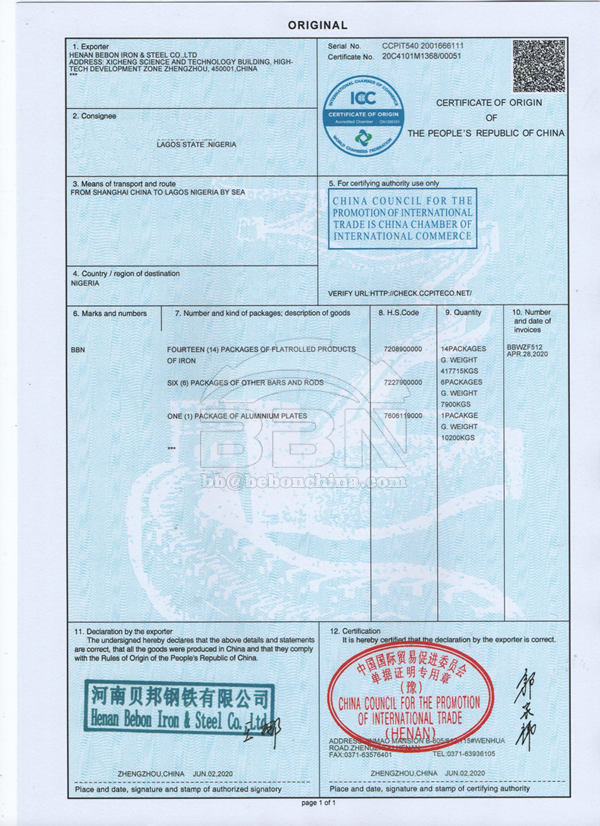

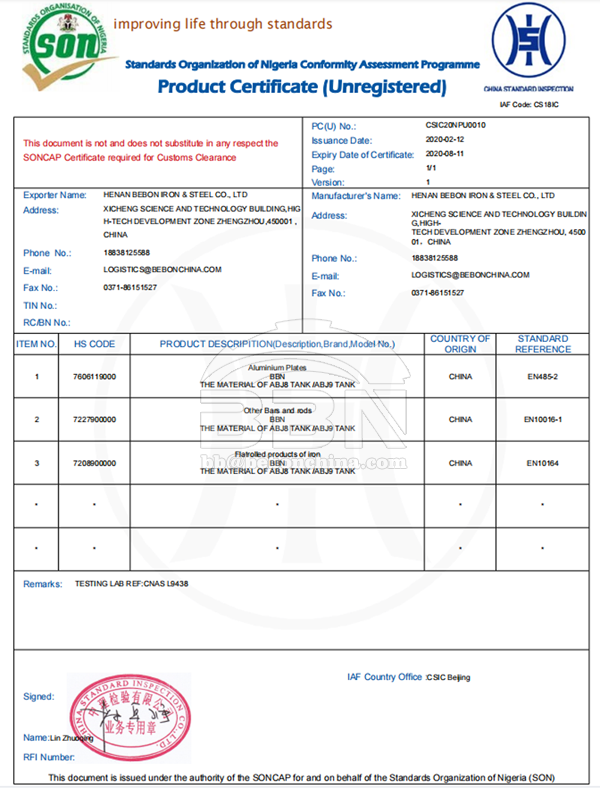

9. Documents of Shipment To NigeriaDocuments of ShipmentDocuments of ShipmentDocuments of Shipment
