Inspection Report of GL AH36 Flat-Bulb Steel

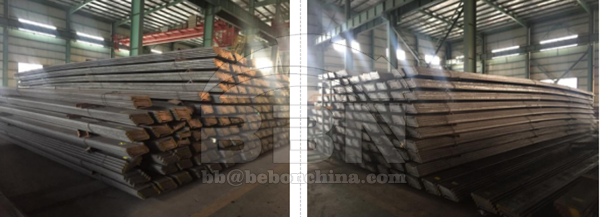

On October 10, 2018, Inspector Han from Q/C Department of BBN steel has inspected the GL AH36 flat-bulb steel, 280×11×10000mm, 653PCS.

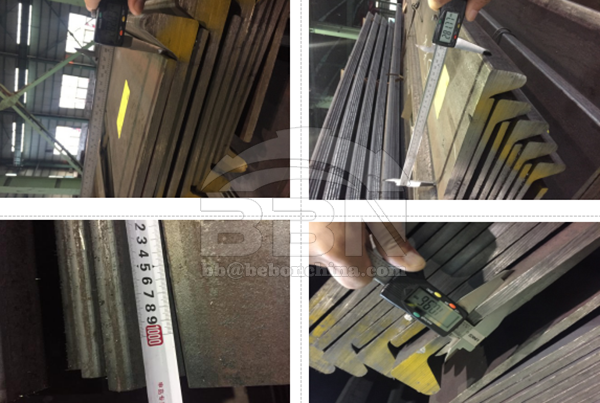

Dimension check: Sample test data sheet (within brackets is the standard range) :

B(276-284)	T(10.7-12.1)	H(50-52)	L(10000-10080)
282.05	11.09	50.16
282.83	10.96	50.80
282.85	11.34	51.05
282.19	11.53	50.73
281.77	11.24	50.71

Note: the length exceeds the measuring range of the gauge, but the estimation is qualified.

If you are interested in the more details for this test report, please download the PDF file.

PDF Detailed Information
