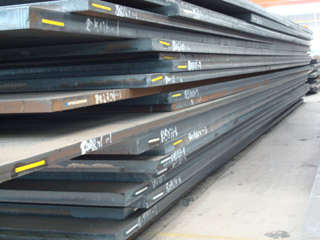

Under DIN EN10025-2 standard Number: 1.0045 S355JR steel plate/sheet is used to manufacture the plants of factory ,the commonconstructure and construction machinery and equipment; for example:Drilling machine ,
Excavator,Tip lorry, Grab,Conweigh belt,Bulldozer ,all kinds of Chain Block, and other
machiney equipments.
|
DIN EN 10025-2 Number: 1.0045
|
Comparison of steel grades
|
|
|
EN10025:1990
|
FE 510 B
|
|
|
DIN17100
|
||
|
ASTM
|
||
|
JIS
|
||
|
NFA 35-501
|
||
|
BS1449
|
50B
|
|
|
UNI7070
|
FE 510 B
|
|
|
Chemical elements
|
C≤ 16mm
max
|
C>16mm
max
|
Si
max |
Mn
max
|
P
max. |
S
max. |
|
%,by mass
|
0.24
|
0.24
|
0.55
|
1.60
|
0.045
|
0.045
|
|
thickness
|
Yield StrengthReH[N/mm2]
transv.min.
|
TensileStrengthRm[N/mm2]transv.
|
Fracture Elongation[%]transv. min.
|
Notch Impact
Energy1)Ch Vcomplete samplelongitud. min [J]
|
|
t≤ 16mm
t >16mm
|
355
345
|
|
|
20 degree
27J
|
|
t < 3mm
t ≥ 3mm
|
|
510-680
490-630
|
|
|
|
Up to 1.5mm
1.51-2.00mm
2.01-2.50mm
2.51-2.99mm
≥ 3mm
|
|
|
13
14
15
16
20
|
