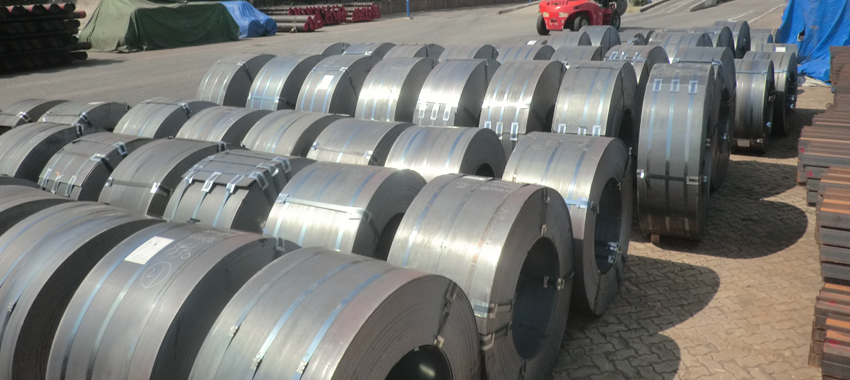

JIS G3101 SS540 Carbon and Low-alloy High-strength Steel Coil
JIS G3101 SS540 Carbon and Low-alloy High-strength Steel Coil Chemical Composition and Mechanical Property
|
C max |
Mn max |
P max |
S max |
|
0.30 |
1.60 |
0.040 |
0.040 |
| Yield Strength (MPa) min. (t≤16mm) | Yield Strength (MPa) min.(16mm<t≤25.4mm) | Tensile Strength (MPa) (t≤25.4mm) | Elongation % min. (t≤25.4mm) |
| 400 | 390 | 540 min. | 16 |
JIS G3101 SS540 Carbon and Low-alloy High-strength Steel Coil Application
SS540 carbon steel coil is used in the Construction of Bridges, Highway Construction and Other Engineering construction.
JIS G3101 SS540 Carbon and Low-alloy High-strength Steel Coil Other Name
JIS G3101 SS540 structural steel, SS540 carbon steel coil, SS540 structural steel coil
Additional Condition
UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.
Other Terms
Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
