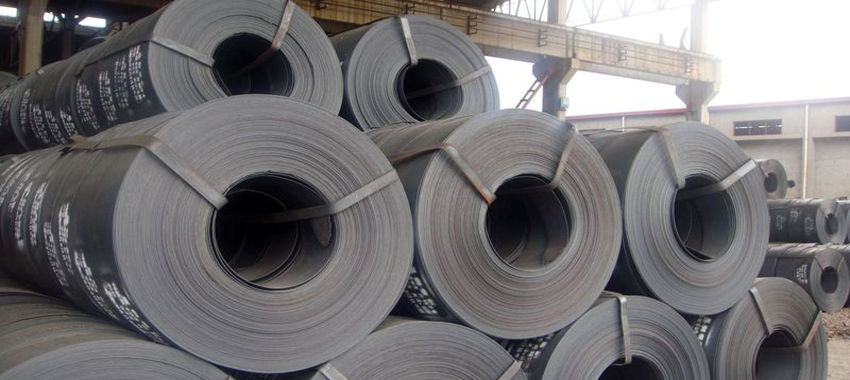

GB/T4171 Q500NH Weather Resistant Steel Coil
GB/T4171 Q500NH Weather Resistant Steel Coil Chemical Composition and Mechanical Property
|
Grade |
Chemical Composition(%) |
||||
|
C Max |
Si Max |
Mn Max |
P Max |
S Max |
|
|
GB/T 4171 Q500NH |
0.12 |
0.65 |
2.0 |
0.025 |
0.030 |
| Yield Strength (MPa) min. (t≤16mm) | Yield Strength (MPa) min.(16mm<t≤25.4mm) | Tensile Strength (MPa) | Elongation % min.(t≤16mm) | Elongation % min.(16mm<t≤25.4mm) |
| 550 | 540 | 620-780 | 16 | 16 |
GB/T4171 Q500NH Weather Resistant Steel Coil Application
Q500NH weather resistant steel coil, GB/T4171 Q500NH weather resistant steel coil
GB/T4171 Q500NH Weather Resistant Steel Coil Other Name
Q500NH weather resistant steel coil, GB/T4171 Q500NH weather resistant steel coil
Additional Condition
UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.
Other Terms
Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
