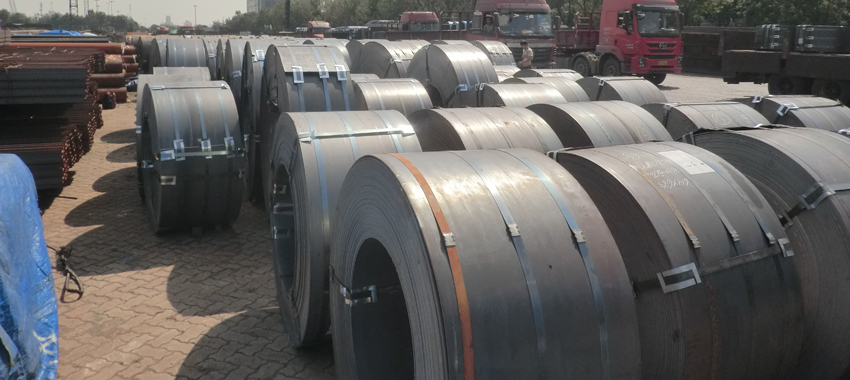

DIN 17155 17Mn4 Steel Coil for Gas Vessels
DIN 17155 17Mn4 Steel Coil for Gas Vessels Chemical Composition and Mechanical Property
|
C |
Si max. |
Mn |
P max. |
S max. |
Al min. | Cr max. | Cu max. | Mo max. | Nb max. | Ni max. |
Ti max. |
V max. |
|
0.14-0.20 |
0.40 |
0.90-1.40 |
0.035 |
0.030 |
0.020 | 0.25 | 0.30 | 0.10 | 0.01 | 0.30 |
0.03 |
0.03 |
| Yield Strength (MPa) min. (t≤16mm) | Yield Strength (MPa) min. (16mm<t≤25.4mm) | Tensile Strength (MPa) | Elongation % min. |
| 290 | 285 | 460-580 | 21 |
DIN 17155 17Mn4 Steel Coil for Gas Vessels Application
DIN 17155 17Mn4 steel coil is mainly used for gas cylinders and gas vessels.
DIN 17155 17Mn4 Steel Coil for Gas Vessels Other Name
DIN 17155 17Mn4 steel coil, DIN 17155 17Mn4 steel coil for gas cylinders, DIN 17155 17Mn4 steel coil for gas vessels
Additional Condition
UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.
Other Terms
Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
