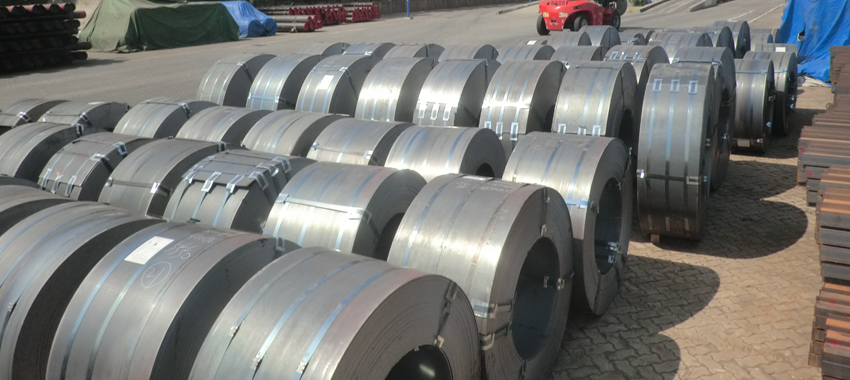

ASTM A514/A514M Grade R Carbon and Low-alloy High-strength Steel Coil
ASTM A514/A514M Grade R Carbon and Low-alloy High-strength Steel Coil Chemical Composition and Mechanical Property
|
C |
Si |
Mn |
P |
S |
Ti |
Cr |
Mo |
Ni |
|
0.15-0.20 |
0.20-0.35 |
0.85-1.15 |
0.035 |
0.035 |
0.03-0.08 |
0.35-0.65 |
0.15-0.25 |
0.90-1.10 |
|
Grade |
Mechanical Property |
|||
|
Thickness |
Yield |
Tensile |
Elongation |
|
|
A514 grade R |
mm |
Min Mpa |
Mpa |
Min % |
|
20 |
690 |
760-895 |
18 |
|
|
20-65 |
690 |
760-895 |
18 |
|
|
65-150 |
620 |
690-895 |
18 |
|
ASTM A514/A514M Grade R Carbon and Low-alloy High-strength Steel Coil Application
ASTM A514/A514M Low-alloy High-strength Steel is is used in Construction of Bridges, Highway Construction and Other Engineering construction.
ASTM A514/A514M Grade R Carbon and Low-alloy High-strength Steel Coil Other Name
ASTM A514/A514M Low-alloy High-strength Steel, A514/A514M Grade R carbon steel coil, A514/A514M Grade R Low-alloy High-strength Steel Coil
Additional Condition
UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.
Other Terms
Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
