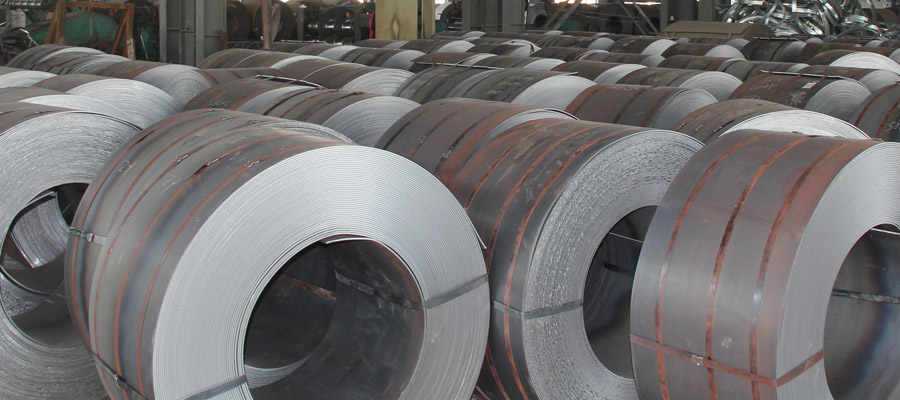

ASME SA709/SA709M Grade HPS100W Carbon and Low-alloy High-strength Steel Coil

ASME SA709/SA709M Grade HPS100W Carbon and Low-alloy High-strength Steel Coil Chemical Composition and Mechanical Property

C max

Si

Mn

P max

S max

V max

Nb

Cu

Ni

Cr

Mo

Al

N max

0.08

0.15–0.35

0.95–1.50

0.015

0.006

0.04–0.08

0.01–0.03

0.90–1.20

0.65–0.90

0.40–0.65

0.020–0.050

0.015

Grade	Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation in 8 in. min. %	Elongation in 2 in. min. %
SA709 HPS 100W	485	585-760	-	19

ASME SA709/SA709M Grade HPS100W Carbon and Low-alloy High-strength Steel Coil Application

SA709 Grade HPS100W carbon steel coil is used in the Construction of Bridges, Highway Construction and Other Engineering construction.

ASME SA709/SA709M Grade HPS100W Carbon and Low-alloy High-strength Steel Coil Other Name

ASME SA709/SA709M low-alloy high-strength steel, SA709 Grade HPS100W carbon steel coil, SA709 Grade HPS100W low-alloy high-strength steel coil

Additional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

Other Terms

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
