Pipeline Steel Introduction

API 5L refers to, pipe lines are used to transport the oil, gas, water out of the ground to oil and gas industry enterprises. There are seamless and welded steel pipes with flat end, treaded end, socket end; the connection ways are welding connection, coupling connection, socket connection, etc.

About PipeLine Steel

Pipe Line Size

Outer Diameter: 9.5mm--114mm

Wall Thickness: 1.65mm-59.54mm

Length: 1m-12m

Tolerance
a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm
c) Length: +/- 5mm

Additional Condition

UT(Ultrasonic examination)

AR(As Hot Rolled only)

TMCP(Thermal Mechanical Control Processing)

N(Normalized)

Z Direction Test(Z15,Z25,Z35)

Charpy V-Notch Impact Test

The Third Party Test (such as SGS Test)

Coated or Shot Blasting and Painting

Types of Pipeline

Include Seamless pipeline and Welded pipeline

PipeLine Standard

API SPEC 5L - The American Petroleum Institute standards
GB/T9711 - China National Standard

Pipeline Technology leadership

Micro alloying heat treatment technology is adopted in the production of API5L pipe line; the production cost of stainless steel seamless pipe line is significantly higher than welded pipe line. With the increase of steel grade, due to carbon restrictions on steel pipe with steel grade higher than X80, seamless pipe made in conventional method could hardly meet user needs; all 12Cr1moV alloy pipes plants are currently researching on enhancing the corrosion resistance and stable working performance in different temperature levels, and in this aspect, Bebon steel has already made great remarkable progress.

Application Area

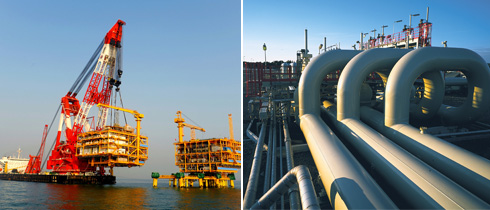

Oil Pineline

Oil pipelines are made from steel tubes which are usually buried. Carbon steel pipes are widely used for fixed oil pipelines, and according to its manufacturing methods,Carbon steel pipes are classified, namely, seamless steel pipes and welded steel pipes. Seamless pipes include hot-rolled seamless pipes and cold drawn seamless pipes. Generally speaking, carbon steel pipes whose working temperature ranges from 0 ℃ to 300 ℃ are manufactured by rimmed steel

Grades:API 5L X70 API 5L X65 API 5L X60 API 5L X56 API 5L X52 API 5L X46 API 5L X42 API 5L Grade B API 5L Grade A

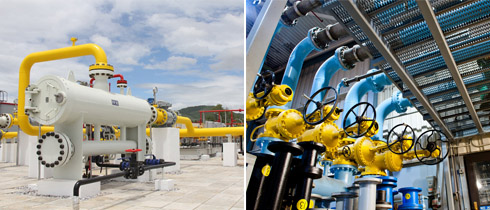

Gas Pineline

Natural gas pipelines cover a range of seamless pipes, spiral pipes, straight seam pipes, ect. X-60 low-alloy steel (min 41,160 kPa ) are widely applied for manufacturing natural gas pipelines, and higher strength materials like X-65 and X-70 are more and more used for natural gas pipelines. Nowadays the new gas pipelines(DI above 426mm) have widely used inner coatings in order to reduce the friction within the gas pipelines.

Grades:API 5L X70 API 5L X65 API 5L X60 API 5L X56 API 5L X52 API 5L X46 API 5L X42 API 5L Grade B API 5L Grade A

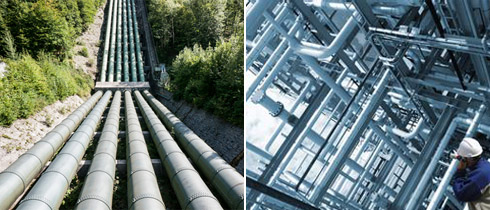

Water Pipeline

Water pipelines combine the advantages of metal pipes and non-metal pipes. Water pipelines possess high strength, excellent rigidity and wonderful corrosion resistance, which make the water pipelines can not only used for transporting and distributing industrial water and drinking water, but also applied for transporting and discharging the industrial wastewater, sewage and rainwater. Moreover, water pipelines are the ideal pipes for sewer pipes diameter 300mm or above.

Grades:API 5L X70 API 5L X65 API 5L X60 API 5L X56 API 5L X52 API 5L X46 API 5L X42 API 5L Grade B API 5L Grade A

Recent Projects

Products

API 5L X70 pipeline

API 5L X65 pipeline

API 5L X60 pipeline

API 5L X56 pipeline

API 5L X52 pipeline

API 5L X46 pipeline

API 5L X42 pipeline

API 5L Grade B pipeline

API 5L Pipe Line Composition

Dimension Tolerance:
Specifications OD(mm) Wall Thickness(mm)
Pipes Body OD(mm) Allowable deviation(mm) OD(mm) Allowable deviation(mm)
≥60.3, S＜20 ±0.75% ≤73.0 +15%, -12.5%
≥60.3, S-≥20 ±1.00% ＞73.0, S＜20 +15%, -12.5%
    ＞73.0, S≥20 +17.5%, -10%
PSL1 Mechanical Properties (MPa):
Standard Grade (MPa) (MPa) A%
API SPEC 5L PSL1
≥
  Psi MPa Psi MPa MIN(%)
B 35,000 241 60,000 414 21~27
X42 42,000 290 60,000 414 21~27
X46 46,000 317 63,000 434 20~26
X52 52,000 359 66,000 455 20~24
PSL1 Grade and Chemical Composition (%):
Standard Grade Chemical Composition(%)
C Mn P S
B ≤0.28 ≤1.20 ≤0.030 ≤0.030
X42 ≤0.28 ≤1.30 ≤0.030 ≤0.030
X46,X52 ≤0.28 ≤1.40 ≤0.030 ≤0.030
PSL2 Mechanical Properties (MPa):
Standard Grade (MPa) (MPa) A% (J)
API SPEC 5L PSL2
  Min Max Min Max   Min
B 241 448 414 758 21~27 41(27)
X42 290 496 414 758 21~27 41(27)
X46 317 524 434 758 20~26 41(27)
X52 359 531 455 758 20~24 41(27)
PSL2 Grade and Chemical Composition (%):
Standard Grade Chemical Composition(%)
C Mn Ti P S
B ≤0.24 ≤1.20 ≤0.04 ≤0.025 ≤0.015
X42 ≤0.24 ≤1.30 ≤0.04 ≤0.025 ≤0.015
X46,X52 ≤0.24 ≤1.40 ≤0.04 ≤0.025 ≤0.015
